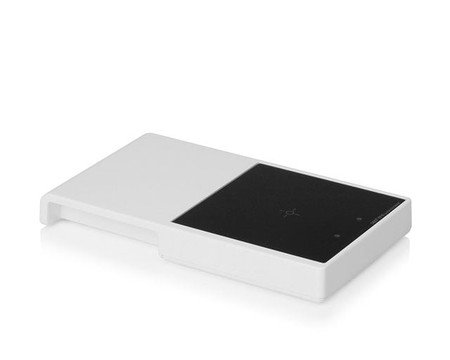

FEIG 317800000 Card Readers

The FEIG ID MRM102 RFID Reader is a compact yet powerful device designed for various applications in retail, logistics, and libraries. Operating at a frequency of 13.56 MHz, this mid-range reader offers an impressive read range of up to 40 cm, making it versatile for different environments. With anti-collision technology, it can simultaneously read up to 30 transponders, ensuring efficiency and speed. Its numerous communication interfaces like Ethernet, USB, and RS232 facilitate easy integration into existing systems, whether you're looking for a module or a robust housing version.

Key Features:

• Compact Multitag Reader for various applications
• Anti-collision function for reading up to 30 transponders simultaneously
• Multiple communication interfaces: Ethernet (TCP/IP), USB, RS232
• Available in module or housing version
• Three different reader modes for versatile usage
• Compatible with ID ISC.MR101 for seamless upgrades
• Ideal for retail, industry, logistics, and libraries

Specifications:

• Dimensions (WxHxD): 85 mm x 145 mm x 31 mm
• Weight: 200 g
• Housing Color: Similar to RAL 9018 (Papyrus white)
• Protection Class: IP30
• Operating Frequency: 13.56 MHz
• Transmitting Power: 1.2 W + 1 dB
• Power Supply: 12 up to 24 V DC or PoE
• Power Consumption: max. 6 W
• Antenna Connector: 1 x SMA connector (500)
• Temperature Range: -25 °C to +55 °C (operating), -25 °C to +85 °C (storage)
• Relative Air Humidity: 5% to 95% (non-condensing)
• Supported Transponders: ISO 15693/ISO 18000-3 Mode 1 and Mode 3
• Reader Modes: ISO Host Mode, Scan Mode, Notification Mode
• Vibration Resistance: 10 to 150 Hz: 0.075 mm / 1 g
• Shock Resistance: 30 g
