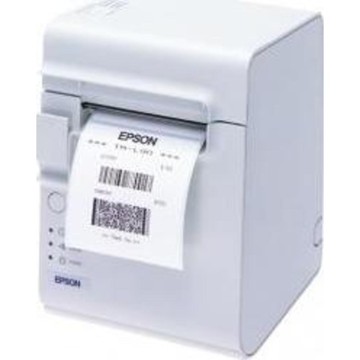

Epson TM-L90 Thermal label printer Parallel, Peeler, Cool white

The Epson 90LF is a compact, professional-grade thermal receipt and label printer engineered for high-volume point-of-sale, retail, hospitality and ticketing environments. Built around proven line/ direct-thermal technology with up to 203 x 203 DPI resolution, this family of TM‑L90 devices delivers fast, consistent output for receipts, labels and linerless media while minimising consumables complexity. With selectable integrated cutting, quick Drop-In paper loading and a small footprint that supports horizontal, vertical or wall-mount installation, the 90LF streamlines counter workflows and reduces downtime. Flexible wired connectivity and optional network or legacy interfaces enable easy integration into existing POS systems and back-office workflows.

Key Features

• High-quality thermal output: 203 x 203 DPI resolution ensures clear text, barcodes and graphics for reliable scanning and professional receipts and labels.
• Fast, efficient printing: Print performance varies by configuration up to 170 mm/s to keep customer queues moving in busy retail and hospitality settings.
• Integrated cutter and media versatility: Selectable auto-cutter plus support for thermal paper, linerless labels and multiple widths (from 38 mm up to 80 mm / 8 cm) for flexible use cases.
• Flexible connectivity: Built-in USB with options for Ethernet, RS‑232/serial and parallel interfaces (and Ethernet/LAN on select models) for broad POS compatibility.
• Compact, serviceable design: Small footprint, easy Drop-In paper loading and rugged commercial construction reduce operator training and maintenance time.

Specifications

• Brand: Epson
• Product Name: Epson 90LF / TM-L90 series
• Printing Technology: Line thermal / Direct thermal
• Maximum Resolution: 203 x 203 DPI
• Maximum Print Speed: Up to 170 mm/s (model dependent)
• Maximum Print Width / Label Width: 80 mm (8 cm)
• Supported Paper Widths: 38 mm, 40 mm, 70 mm, 80 mm
• Maximum Roll / Media Diameter: 80–90 mm (model dependent)
• Auto Cutter / Cutter Included: Yes (selectable/integrated)
• Connectivity Technology: Wired (USB standard; optional Ethernet, Parallel, RS‑232/Serial)
• Interfaces: USB 2.0, USB Type B, RS‑232, Parallel (LPT), Ethernet (optional models)
• Buffer Size: 4 KB
• Print Colors: Black (monochrome)
• Printhead Life: 20 million characters
• MTBF: 360000 h
• MCBF: 70000000
• Media Thickness: 0.06 - 0.15 mm
• Character Density / Sizes: 16.9, 22.6 cpi
• Command Compatibility: ESC/POS
• Optional Functions: Peeler (optional on select models)
• Dimensions (W x D x H): 140 x 148 x 203 mm
• Weight: ~1.9 kg
• Power: Adapter output 24 V; power supply included on applicable models
• Certifications: VCCI class A, FCC class A, CE, AS/NZS 3548, UL, CSA, TUV
• Colors / Case Options: Gray, White, Black, Dark Grey / Cool White (model dependent)
• Country of Origin: China
• Typical Use: POS receipts, labels, ticketing and linerless label applications in retail, hospitality and kiosk environments
