Epson

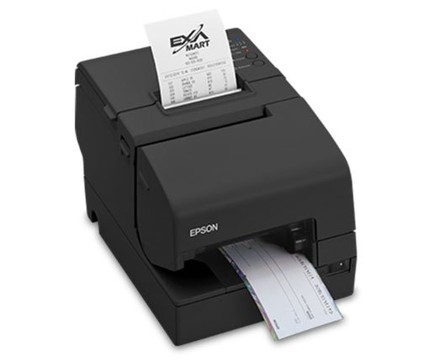

Epson - H6000V - Multifunction Receipt/Slip/Checking Processing Printer, Micr and Endorsement, Serial/USB/Ethernet and Beacon USB Dongle, Black, with Power Supply

SKU:

C31CG62A9831

MICR and endorsement capability sets the Epson C31CG62A9831 apart within the OmniLink TM-H6000V multifunction POS printer family, making it the configuration suited to check-processing environments alongside standard receipt and slip printing. It uses 9-pin dot matrix technology to print monochrome output at up to 5.7 lps across a maximum of 60 columns, and accepts receipt media on rolls up to 3.30 inches in diameter, with horizontal media sizes of 2.68 in and 9 in and a vertical media size of 11.7 in. Connectivity spans serial, USB, powered USB, Ethernet via RJ-45, and Bluetooth, with NFC also built in, and an auto-cutter is included. The unit operates at 24 V DC, carries a 4 KB buffer, and is rated to an MTBF of 360000 hours. At 9.70 lb in a black chassis measuring 7.1 in tall, 7.3 in wide, and 11 in deep, it fits retail and financial services countertop installations. Compliance includes RoHS and WEEE, and the printer holds Energy Star qualification.
Prices could not be updated.
Description
ico-plus ico-minus

The Epson TM-U220 Receipt Printer is designed for maximum efficiency in retail, restaurant, and hospitality environments. This compact and reliable printer offers fast print speeds and is easy to operate, ensuring convenient receipt printing for customers and kitchen orders. With features like drop-in paper loading and two-color black and red printing, businesses can easily highlight special offers and create impactful logos. Available in three models—with options for autocutting and wall mounting—the TM-U220 series is the perfect choice for organizations looking to enhance their point-of-sale capabilities while maintaining cost-effectiveness.


Key Features
  • Faster print speeds for improved workflow.
  • Drop-in paper loading for effortless paper installation.
  • Two-color black and red printing for enhanced promotional materials.
  • Adjustable paper widths (58mm, 70mm, or 76mm).
  • Models with autocutter available for full or partial cuts.
  • Compatible with existing TM-U200 systems for a smooth upgrade.

Specifications
  • Print Method: 9-pin serial impact dot matrix
  • Print Speed: 4.7 lps (40 columns), 6.0 lps (30 columns)
  • Paper Dimensions: 57.5mm, 69.5mm, 76mm (W)
  • Paper Thickness: 0.06 to 0.085mm
  • Column Capacity: 40/42 or 33/35 columns
  • Interface: RS-232, Bi-directional parallel, optional USB
  • Reliability: MTBF 18 x 104 hours, MCBF 18 x 106 lines
  • Weight: Type A: 2.7 Kg, Type B: 2.5 Kg, Type D: 2.3 Kg
  • Power Supply: AC adapter included
  • Dimensions: Type A: 160 x 286 x 157.5 mm

Main Features

  • POS: Yes

  • Case color: Black

  • Connection: USB, Ethernet, Bluetooth

  • Printing Technology: Dot Matrix

Technical Specifications
ico-plus ico-minus
Technical Information
Print Color Capability Monochrome
Print Technology Dot Matrix
Maximum Mono Print Speed (lps) 5.7 lps
Number of Pins 9-pin
Maximum Number of Columns 60
Features
  • Near Field Communication (NFC)
  • Auto-cutter
MICR Yes
Connectivity Technology Wired
Memory
Buffer 4 KB
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Powered USB Yes
Network & Communication
Ethernet Yes
Bluetooth Yes
Media Types & Handling
Media Type Receipt
Maximum Roll Diameter 3.30"
Reliability
MTBF 360000 Hour
Power Description
Input Voltage 24 V DC
Physical Characteristics
Product Color Black
Height 7.1"
Width 7.3"
Depth 11"
Weight (Approximate) 9.70 lb
Miscellaneous
Package Contents
  • OmniLink TM-H6000V Multifunction POS Printer
  • Thermal roll paper (starter roll for testing)
  • Power switch cover
  • Connector cover
  • Set-up guide
  • Ribbon cassette: ERC-32(B)
  • Ribbon cassette: ERC-43(B) (models with Endorsement printing)
  • AC adapter and AC cord
  • CD (drivers, utilities, and documentation
Additional Information

Horizontal Media Size: 2.68" , 9"

Vertical Media Size: 11.7" , 2.68"
Energy Star Yes
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Documents
ico-plus ico-minus
Product document tm-h6000v.pdf C31CG62A9831  (PDF)
