Entrust 525302-015 Card Printers

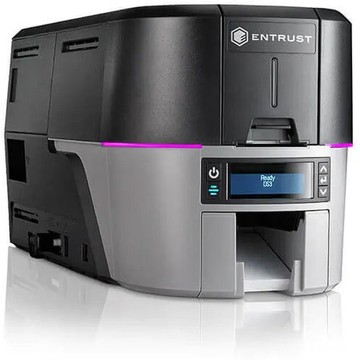

The Entrust Sigma-DS3 Card Printer is a direct-to-card, dye-sublimation ID printer built for secure, high-throughput badge and credential issuance in corporate, education, government and service-desk environments. Designed for single-sided (simplex) production with optional duplex upgrades and advanced encoding, the Sigma-DS3 supports magnetic stripe, contact and contactless smart card encoding to integrate with access control and membership systems. With enterprise-grade security features such as secure boot and a Trusted Platform Module, network and mobile connectivity options, and a 125-card input hopper, it delivers reliable, professional-quality photo IDs and access badges while helping organizations protect issuance workflows and simplify on-demand card production.

Key Features

• Enterprise security: Secure Boot and Trusted Platform Module (TPM) protect firmware and encryption keys to safeguard card issuance and stored credentials.
• Advanced encoding: Integrated support for magnetic stripe, contact smart card and contactless/RFID encoding (including EM4xxx, TK4xxx 125 kHz, HID, MIFARE Classic and DESFire) for broad system compatibility.
• High productivity: Robust throughput with a maximum single-sided print speed up to 1100 cards/hour and dedicated color ribbon speeds for on-demand workflows.
• Flexible connectivity: Standard USB and Ethernet with optional WiFi and mobile OS compatibility (iOS, Android, Windows) to fit networked and kiosk deployments.
• Modular expandability: Optional duplex upgrade, laminator, tactile modules and multi-card hopper or kiosk configurations allow the printer to adapt to evolving issuance needs.

Specifications

• Brand: Entrust
• Model family / name: Sigma-DS3
• MPN / SKU (examples): 525302-001, 525302-002
• Printing technology: Dye sublimation (direct-to-card)
• Print resolution: 300 dpi
• Special monochrome resolutions: 300 x 600 dpi; 300 x 1200 dpi
• Maximum print speed (single-sided): 1100 cards/hour
• Color print speed (single-sided, ribbon): 250 cards/hour
• Color print speed (double-sided, ribbon): 180 cards/hour
• Print sides: Single-sided (simplex); optional double-sided (duplex)
• Input hopper capacity: 125 cards
• Output hopper capacity: 25 cards
• Reject hopper capacity: 10 cards
• Supported card thickness: 0.010 - 0.040 inches (0.25 - 1.016 mm)
• Card size standards: ID-1, CR-79, CR-80
• Encoding options: Magnetic stripe; Contact and contactless smart card encoding (RFID: EM4xxx, TK4xxx 125 kHz; HID; MIFARE Classic 13.56 MHz; MIFARE DESFire 13.56 MHz)
• Connectivity: USB, Ethernet; optional WiFi; mobile OS compatibility: iOS, Android, Windows
• Secure features: Secure Boot: true; Trusted Platform Module (TPM): true
• Pre-loaded consumables: Pre-loaded ribbon cartridges: true
• Product material: Plastic / Metal
• Weight: 8 kg
• Dimensions (W × D × H): 54 × 29 × 44 cm
