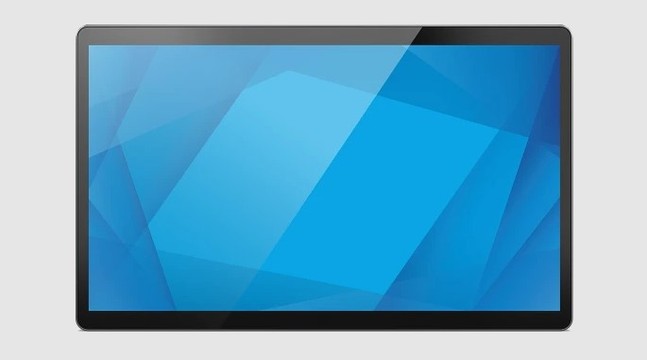

Elo 1304LS, 33.8cm (13,3''), Projected Capacitive, 10 TP, Full HD, USB-C, kit, grey

SKU:

E968117

touch monitor, screen size: 33.8 cm (13.3''), Projected Capacitive, 10 points, 1920x1080 pixels, VESA mount (75x75 mm), speaker, viewing angle 178/178°(H/V), contrast: 600:1, antiglare, connection: USB-C, incl.: cable (USB-C), QSG, grey
Description
ico-plus ico-minus
Elo's 1304LS 13-inch Touchscreen Monitor sets a new standard in interactive display technology. With its optically-bonded full HD LCD and **Ultra-thin design**, this monitor pairs brilliant visual clarity with commercial-grade durability, making it the ideal choice for POS systems, interactive digital signage, and self-service applications. Enjoy the innovative **TouchPro® PCAP technology** that supports up to 10 simultaneous touches, ensuring a responsive user experience. Combined with Energy Star 8.0 certification and a sleek aesthetic, this monitor is designed for both functionality and style, enhanced further by dual built-in speakers.
Key features:
  • Optically-bonded display for stunning clarity
  • Energy Star 8.0 certified for energy efficiency
  • Supports 10 simultaneous touches
  • Narrow border design with edge-to-edge glass
  • Durable IK07 design with scratch-resistant glass
  • Flexible mounting options for versatile installation

Specifications:
  • Color: Dark gray
  • Diagonal Size: 13.3" / 337.82 mm
  • Active Touch Area: 11.57" x 6.5" / 293.76 mm x 165.24 mm
  • Touch Technology: TouchPro PCAP
  • Native Resolution: 1920 x 1080
  • Brightness: 270 nits
  • Contrast Ratio: 600:1
  • Dimensions: 12.27" x 7.56" x 0.59"
  • Weight: 1.92 lbs / 0.87 kg (unpackaged)
  • Operating Temperature: 0°C to 40°C
  • Warranty: 3 years

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 13"
Viewable Screen Size 13.3"
Screen Mode Full HD
Panel Technology Thin Film Transistor (TFT)
Response Time 27 ms
Response Time Details 30 ms Typical
Aspect Ratio 16:9
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type
  • Wall Mountable
  • Rear Mount
  • Desk Mountable
  • Shelf Mount
  • Floor-mountable
  • Pole Mount
  • Bracket-mountable
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
  • Low Blue Light
Horizontal Frequency 30 kHz to 82 kHz
Impact Protection (IK) Rating IK07
Active Display Area (H x V) 11.50" x 6.50"
Video
Maximum Resolution 1920 x 1080
Color Supported 16.2 Million Colors
Native Contrast Ratio 600:1
Brightness 270 Nit
Maximum Refresh Rate 60 Hz
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
USB Yes
USB Type-C Yes
Environmental Conditions
Operating Temperature Range 32°F (0°C) to 104°F (40°C)
Operating Humidity Range 20% to 80% (Non-condensing)
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Gray
Product Color Dark Gray
Height 7.6"
Width 12.3"
Depth 0.8"
Weight (Approximate) 1.92 lb
Miscellaneous
Energy Star Yes
Application/Usage
  • Commercial
  • Point of Sale (POS)
Documents
ico-plus ico-minus
Product document 1304ls-2024.pdf E968117 Product document mod-xx04ls-elo-monitor-datasheet.pdf MOD-XX04LS
