Elo

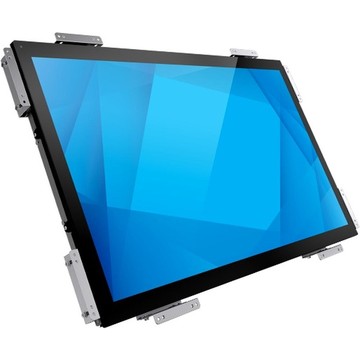

Elo, 2294L, 21.5-Inch Wide Fhd LCD Wva (Led Backlight), Open Frame, Hdmi, Vga & Display Port Video Interface, Pcap Bezel Drop-In Replacement for Saw, USB & RS232 Touch Controller Interface.

SKU:

E297107

Rated IP65 and IK07, the Elo E297107 is a 21.5-inch open-frame TouchPro Projected Capacitive touchscreen built for 24/7 operation in kiosk, gaming, healthcare, industrial, and commercial environments. It resolves Full HD 1920 x 1080 across an active display area of 18.76 in x 10.56 in, with a 3,000:1 native contrast ratio, 250 Nit brightness, and 16.7 million colors rendered through a TFT LED-backlit panel at a 14 ms typical response time. Ten simultaneous touch points and 178-degree horizontal and vertical viewing angles support demanding interactive deployments. HDMI, VGA, DisplayPort, and USB Type-B cover video and touch connectivity, while flush mount and rear mount options with 100 x 100 VESA compatibility simplify integration into cabinets and kiosk enclosures. Operating power runs 12.80 W with a 14.50 W maximum, within a temperature range of 32 degrees F (0 degrees C) to 104 degrees F (40 degrees C). The 11.24 lb chassis measures 20.3 in wide by 12.2 in tall by 1.5 in deep and complies with RoHS, China RoHS, and WEEE, backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo 2440L 24-inch Open-Frame Touchmonitor is designed to elevate user interaction in settings like kiosks, gaming machines, and self-service stations. Renowned for its edge-to-edge glass design, this monitor offers **Superb Image Quality** and **Touch Technology** reliability. With options for single-touch and multi-touch capabilities, it integrates seamlessly into any environment, featuring a compact form factor and multiple mounting options. Invest in a touch solution that combines style, functionality, and long-term durability, backed by a **3-year standard warranty**.


Key Features:

  • True-flat design for enhanced aesthetics and usability
  • Pure-glass touchscreen ensuring optimal image quality
  • Edge-to-edge zero-bezel design for modern appeal
  • Multiple mounting options for versatile installations
  • Variety of touch technologies including IntelliTouch and projected capacitive

Specifications:

  • Model: 2440L
  • Color: Black
  • Active Display Area: 521.3 x 293.2 mm
  • Diagonal Size: 23.6 inches
  • Resolution: 1920 x 1080 Full HD
  • Brightness: 300 nits (LCD)
  • Response Time: 5 ms
  • Viewing Angle: Horizontal 170°, Vertical 160°
  • Weight: 5.7 kg (unpackaged)
  • Power Consumption: 30W (typical ON)
  • Operating Temperature: 0 °C to 40 °C
  • Warranty: 3 years standard
Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document 4363l.pdf MOD-ELO-OPEN-FRAME-TOUCH-MONITORS
FAQs
ico-plus ico-minus
What connectivity interfaces do the Elo Open-Frame Touch Monitors support?
The Elo Open-Frame Touch Monitors support Ethernet, serial, and USB connectivity.
What touch technologies are available on the Elo Open-Frame Touch Monitors?
The monitors are available with IntelliTouch and projected capacitive touch technologies, supporting both single-touch and multi-touch configurations.
What warranty does the Elo Open-Frame Touch Monitors carry?
Elo backs these open-frame touch monitors with a 3-year standard warranty.
What types of installations or enclosures are the Elo Open-Frame Touch Monitors designed for?
The open-frame design with multiple mounting options makes these monitors suitable for integration into kiosks, gaming machines, and self-service stations.
Do the Elo Open-Frame Touch Monitors support large-format display configurations?
Yes, the product line includes both standard and large-format display options.
