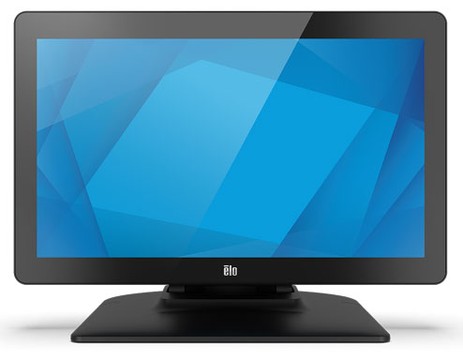

Elo 1502LM, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black

SKU:

E967064

TouchPro Projected Capacitive touch technology supporting 10 simultaneous touchpoints — operable with wet or dry gloves — defines the Elo E967064 as a purpose-built medical-grade LCD touchscreen monitor for healthcare environments. Its 15.6-inch TFT panel renders Full HD 1920 x 1080 at 250 Nit brightness with a 700:1 native contrast ratio, a 30 ms response time, and a 160-degree horizontal and vertical viewing angle. IP-22 and IEC 60601-1 compliance underpin the sanitizable, anti-glare housing, while an on-screen display and LED backlight round out the display feature set. Three USB ports, USB Type-C, HDMI, and VGA cover connectivity, and an integrated USB hub expands device capacity. The 100 x 100 VESA mount pattern supports wall, shelf, and pole installation; the unit weighs 3.62 lb without stand and 6.79 lb with stand. The IEC 60601-compliant power supply is included, and the monitor is backed by Elo's 3-year standard warranty.

Prices could not be updated.

Item on backorder — chat for lead time

Have you seen a lower price?

Same-day shipping on orders placed before 2:00 p.m. CT

Secure payment with

Need help? Contact our specialists to learn more about our solutions:

Description

The Elo M-Series 1502L is a 15.6-inch LED touchscreen monitor built for retail, hospitality, and point-of-sale environments where reliable, high-quality interactive displays are essential. Designed for continuous public use, it features a Full HD 1920 x 1080 resolution panel with edge-to-edge glass, delivering sharp, engaging visuals at 300 Nit brightness and a 700:1 contrast ratio. The IntelliTouch Pro Projected Capacitive touchscreen supports 10 simultaneous touches with no calibration required, enabling a fluid, tablet-like experience for both staff and customers. With HDMI, VGA, and USB connectivity, integration into existing POS infrastructure is straightforward. VESA-compatible mounting accommodates wall, pole, and desktop installations, and an operating power consumption of just 8.70 W keeps energy costs low across high-uptime deployments.

Main Features

Touch: Yes
Connection: USB

Technical Specifications

Technical Information
Screen Size Class	16"
Viewable Screen Size	15.6"
Screen Mode	Full HD
Panel Technology	Thin Film Transistor (TFT)
Response Time	30 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Mount Type	Wall Mountable Shelf Mount Pole Mount
Backlight Technology	LED
Features	Anti-glare On-screen Display (OSD)
Horizontal Frequency	31.50 kHz to 82 kHz
Vertical Frequency	50 Hz to 75 Hz

Video
Maximum Resolution	1920 x 1080
Native Contrast Ratio	700:1
Brightness	250 Nit

Audio
Speakers	Yes

Touchscreen Information
Touchscreen Type	TouchPro Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

Interfaces/Ports
HDMI	Yes
USB	Yes
VGA	Yes
USB Type-C	Yes
Number of USB Ports	3

Built-in Devices
Built-in Devices	USB Hub

Physical Characteristics
VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Color Family	Black
Product Color	Black
Height	9.6"
Width	15.2"
Depth	1.3"
Height with Stand	11.21"
Width with Stand	15.23"
Depth with Stand	7.84"
Weight (Approximate)	3.62 lb
Weight with Stand (Approximate)	6.79 lb

Documents

1502lm.pdf E967064 (PDF)

FAQs

What touch technology does the Elo 1502L use, and how many simultaneous touch points does it support?

The Elo 1502L uses TouchPro Projected Capacitive (PCAP) technology and supports up to 10 simultaneous touch points. No calibration is required for this touch technology, and it works with Windows HID drivers on Windows 7 and 8 without additional software.

What display resolutions are available on the Elo 1502L, and how does brightness differ between them?

The Elo 1502L is available in a Full HD model with a native resolution of 1920 x 1080 and a panel brightness of 300 nits, and an HD model with a native resolution of 1366 x 768 and a panel brightness of 220 nits. Both models have a 15.6-inch diagonal screen with a 16:9 aspect ratio.

What video and connectivity inputs does the Elo 1502L support?

The Elo 1502L supports HDMI and Mini-VGA video inputs, along with a USB connection for touch. The monitor also includes an audio input jack and built-in 2 x 2W internal speakers.

What mounting options are available for the Elo 1502L touchscreen monitor?

The Elo 1502L offers a VESA 4-hole 75 mm and 100 mm mounting interface on the rear of the unit, supporting wall mount and pole mount installations. The included stand can also be configured in either a low-profile hostess position or an upright position for desktop use.

What optional peripherals can be added to the Elo 1502L for retail and POS deployments?

Optional accessories include a Magnetic Stripe Reader, NFC reader, barcode scanner, and VFD customer display, all designed for user installation without external brackets. Pole mounts, a wall mount, floor stand, and extended cable kits are also available separately.

What warranty does the Elo 1502L carry, and are extended coverage options available?

The Elo 1502L includes a 3-year standard warranty, with extended coverage options available up to 5 years, including configurations with advance unit replacement. The monitor also has a demonstrated MTBF of 50,000 hours.
