Elo

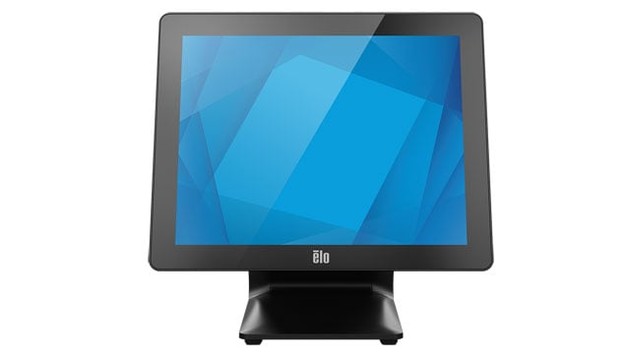

Elo ESY15i7-2UWA-1 All-in-One POS 15.6", i7-1265UL, 16GB, 256GB, 10, IP54

SKU:

E701555

Configured with 16 GB DDR5 SDRAM and a 256 GB M.2/PCI Express SSD, the Elo E701555 is a fanless all-in-one POS terminal built around a 15.6-inch IPS LED display with 10-point projected capacitive touch. The i7-1265UL processor runs at 4.80 GHz with UHD Graphics, while the panel delivers a 4:3 aspect ratio, 800:1 contrast ratio, 23 ms response time, 160-degree horizontal and 150-degree vertical viewing angles across 262,000 colors. Connectivity spans four USB 3.0 ports, four micro USB 2.0 ports, one USB-C port, serial, RJ-50, Gigabit Ethernet, Wi-Fi, Bluetooth 5.2, and a dedicated cash drawer port. An IP54 ingress protection rating suits counter and stand deployments where spill and dust resistance matter, and the edge-to-edge, anti-glare glass supports an integrated VESA mount. Dual 2 W speakers, AC and DC power source compatibility, and Energy Star certification round out the 14.77 lb chassis.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo VisionTouch I3 Display is a professional all‑in‑one touchscreen computer from Elo’s I‑Series 3 family, designed for point‑of‑sale, self‑service kiosks, digital signage and healthcare check‑in stations. Combining a projected capacitive multi‑touch interface with integrated Intel platforms across configurations, it delivers responsive, commercial‑grade interaction and flexible deployment options. Edge‑to‑edge glass, zero‑bezel styling and IP54‑rated, fanless designs reduce maintenance and improve durability in busy environments, while built‑in connectivity — Wi‑Fi 6, Bluetooth, Gigabit Ethernet and full‑featured USB‑C — plus support for peripherals and cash drawers simplifies integration into retail, hospitality and enterprise workflows.

Key Features

  • Accurate multi‑touch: Projected capacitive (PCAP) touch with 10‑point support for precise, simultaneous multiuser input and fast transaction handling.
  • Compact all‑in‑one design: Integrated PC and display reduces footprint and cabling for counter, kiosk or tabletop installations with optional VESA mounting.
  • Commercial reliability: Fanless construction, IP54 ingress protection and long MTBF figures provide quiet, dust‑ and splash‑resistant operation in demanding environments.
  • Enterprise connectivity: Wi‑Fi 6, Bluetooth (5.0–5.2 depending on configuration), Gigabit Ethernet, full‑featured USB‑C and powered ports enable seamless peripheral and network integration.
  • Flexible deployment: Configurations range from no‑OS platforms to Intel Core and Celeron processors, enabling customized software stacks and fleet management.
  • Peripheral ready: Powered serial/RJ50, RS‑232 options, cash drawer support and Elo Edge Connect compatibility simplify integration with printers, scanners, EMV readers and other POS devices.

Specifications

  • Brand / Model: Elo VisionTouch I3 Display (Elo I‑Series 3)
  • Form Factor: All‑in‑one (with stand; VESA mounting supported)
  • Display sizes: 15.6", 21.5", 23.8" (model dependent)
  • Display: Full HD 1920 x 1080 IPS
  • Aspect Ratio: 16:9
  • Touch technology: Projected Capacitive (PCAP), 10‑point
  • Display surface: Edge‑to‑edge glass with anti‑glare
  • Processors: Intel options including i7‑1265UL, i3‑1215UL, Celeron 7305L (configuration dependent)
  • RAM: 8 GB, 16 GB (configuration dependent)
  • Storage: SSD (M.2) — 128 GB, 256 GB (configuration dependent)
  • Operating System: No OS (available on some configurations)
  • Security: TPM 2.0
  • Networking: Wi‑Fi 6 (802.11ax), Gigabit Ethernet
  • Wireless: Bluetooth 5.0–5.2 (model dependent)
  • Ports & I/O: USB 3.0, USB‑C (full‑featured), powered USB, powered RJ50 serial / RS‑232 options
  • Peripheral compatibility: Elo Edge Connect for EMV readers, barcode scanners, MSR, cameras, and cash drawer support
  • Durability: Fanless design, IP54 ingress protection, MTBF ~50,000 hours (configuration dependent)
  • Color: Black

Main Features

  • Touch: Yes

  • POS: Yes

  • Screen size: 16 inch

  • Connection: Ethernet, WLAN/Wi-Fi, Serial, USB

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Technical Information
Cooling Fan Fanless
Bluetooth Yes
Bluetooth Standard Bluetooth 5.2
Form Factor All-in-One
Features
  • Edge-to-Edge Glass Design
  • Anti-glare
Processor & Chipset
Processor Type Core i7
Processor Speed 4.80 GHz
Processor Model i7-1265UL
Memory
Standard Memory 16 GB
Memory Technology DDR5 SDRAM
Storage
Solid State Drive Capacity 256 GB
Solid State Drive Interface M.2/PCI Express
Display & Graphics
Screen Size 15.6"
Active Display Size (Horizontal) 11.97"
Active Display Size (Vertical) 8.98"
Display Screen Type LED
Panel Technology In-plane Switching Technology (IPS)
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 4:3
Contrast Ratio 800:1
Response Time 23 ms
Color Supported 262,000 Colors
Horizontal Viewing Angle 160°
Vertical Viewing Angle 150°
Graphics Controller Model UHD Graphics
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
RJ-50 Yes
Number of Micro USB 2.0 Ports 4
Number of USB 3.0 Ports 4
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Power Description
Power Source
  • AC Power
  • DC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 14.77 lb
Miscellaneous
Ingress Protection (IP) Rating IP54
Energy Star Yes
Documents
ico-plus ico-minus
Product document iseries-3.pdf E701555  (PDF)
