Elo

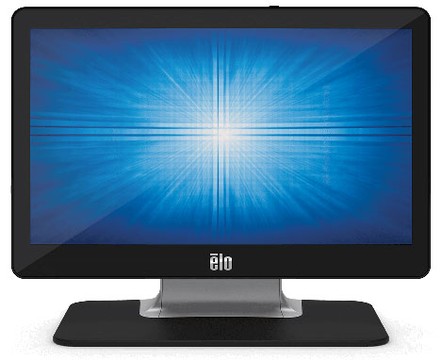

Elo 1302L, 33.8cm (13,3''), Projected Capacitive, 10 TP, Full HD, black

SKU:

E683204

The single USB Type-C port on the Elo E683204 carries touch, video and power over one cable, reducing a typical three-cable POS setup to one connection, with HDMI and VGA available as alternatives. The 13.3-inch Projected Capacitive panel resolves to 1920 x 1080 Full HD across a 16:9 aspect ratio, rendering 16.7 million colors at 300 Nit brightness and an 800:1 native contrast ratio with a 25 ms response time at 60 Hz. A built-in microphone and integrated speakers add audio capability without external hardware. The monitor measures 12.8 in wide and 1 in deep without its stand, weighs 2.69 lb bare or 5.11 lb with the stand attached, and is VESA 75 x 75 compatible for pole, shelf or wall mounting. Operating power consumption is 9.80 W. Suited to point-of-sale, self-service and hospitality environments, the E683204 is backed by a 3-year standard warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1502L is a 15.6" Full HD LCD touchscreen monitor designed for businesses deploying point-of-sale terminals, self-service kiosks, customer-facing displays, and hospitality applications. Built on Elo's Projected Capacitive (PCAP) multi-touch technology, it supports simultaneous touch input and delivers a 1920 x 1080 resolution across a 16:9 panel with LED backlighting, 700:1 native contrast ratio, and wide 160° horizontal and vertical viewing angles with an anti-glare surface. A single USB Type-C connection carries touch, video, and power, reducing cable clutter and simplifying installation, while HDMI and VGA ports ensure compatibility with existing equipment. The built-in USB hub, integrated speakers, and VESA 100 x 100 mount compatibility — alongside pole, shelf, and wall mount support — give IT teams maximum deployment flexibility across retail, hospitality, and enterprise environments.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 13"
Viewable Screen Size 13.3"
Screen Mode Full HD
Response Time 25 ms
Aspect Ratio 16:9
Horizontal Frequency 30 kHz to 75 kHz
Vertical Frequency 60 Hz to 60 Hz
Video
Maximum Resolution 1920 x 1080
Standard Refresh Rate 60 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 800:1
Brightness 300 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
USB Type-C Yes
Total Number of USB Type-C Ports 1
Built-in Devices
Webcam No
Microphone Yes
Power Description
Operating Power Consumption 9.80 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 8.3"
Width 12.8"
Depth 1"
Height with Stand 10.22"
Width with Stand 12.84"
Depth with Stand 5.91"
Weight (Approximate) 2.69 lb
Weight with Stand (Approximate) 5.11 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document 1302l-2021.pdf E683204  (PDF)
FAQs
ico-plus ico-minus
What touch technology does the Elo 02-Series 1302L use, and how many simultaneous touches does it support?
The Elo 1302L uses Elo's TouchPro PCAP (projected capacitive) technology with edge-to-edge glass and supports up to 10 simultaneous touches.
What video and data connectivity options are available on the Elo 02-Series 1302L?
The 1302L offers USB Type-C, which carries power, touch, and video over a single cable, as well as HDMI and VGA inputs for use with systems that do not have USB Type-C.
What is the native display resolution and brightness of the Elo 1302L?
The 1302L has a 13.3-inch active matrix TFT LCD panel with a native resolution of 1920 x 1080 at a 16:9 aspect ratio, with panel brightness rated at 300 nits and 270 nits when measured through the PCAP touch layer.
What input types does the Elo 1302L touchscreen recognize?
The 1302L is compatible with finger, glove, and stylus inputs.
What mounting options are supported by the Elo 02-Series 1302L?
The 1302L supports stand, wall, and pole mount configurations, giving integrators flexibility for POS counters, kiosk enclosures, and customer-facing installations.
What warranty does the Elo 02-Series 1302L carry?
The Elo 1302L is backed by a three-year standard warranty.
