Elo

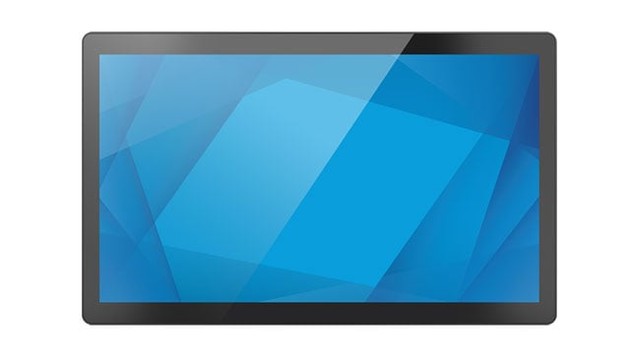

Elo TouchMax 24 i5 POS Terminal Intel Core i5, 23.8-inch, Projected capacitive 10-touch, 8GB, 128GB SSD

SKU:

E608662

Fitted with an Intel Core i5-1245UL running at 4.40 GHz and backed by 8 GB of DDR5 SDRAM, the Elo E608662 is a fanless all-in-one POS terminal built around a 23.8-inch IPS LED touchscreen with projected capacitive 10-point touch, a 1,000:1 contrast ratio, 16 ms response time, and 178-degree horizontal and vertical viewing angles. A 256 GB M.2 SSD and 128 GB of flash memory handle storage, while the edge-to-edge glass panel renders 16.7 million colors across a 16:9 aspect ratio. Connectivity spans 4 USB 3.0 ports, 1 USB-C port, 4 Micro-USB Edge Connect ports, a powered RJ-50 serial port, Gigabit Ethernet, Wi-Fi, and Bluetooth 5.2. Dual 2 W speakers, AC and DC power support, and an IP54 ingress protection rating round out the hardware in a 14.80 lb black chassis. The unit ships without an operating system and carries Energy Star qualification.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo VisionTouch I3 Display is a professional all‑in‑one touchscreen computer from Elo’s I‑Series 3 family, designed for point‑of‑sale, self‑service kiosks, digital signage and healthcare check‑in stations. Combining a projected capacitive multi‑touch interface with integrated Intel platforms across configurations, it delivers responsive, commercial‑grade interaction and flexible deployment options. Edge‑to‑edge glass, zero‑bezel styling and IP54‑rated, fanless designs reduce maintenance and improve durability in busy environments, while built‑in connectivity — Wi‑Fi 6, Bluetooth, Gigabit Ethernet and full‑featured USB‑C — plus support for peripherals and cash drawers simplifies integration into retail, hospitality and enterprise workflows.

Key Features

  • Accurate multi‑touch: Projected capacitive (PCAP) touch with 10‑point support for precise, simultaneous multiuser input and fast transaction handling.
  • Compact all‑in‑one design: Integrated PC and display reduces footprint and cabling for counter, kiosk or tabletop installations with optional VESA mounting.
  • Commercial reliability: Fanless construction, IP54 ingress protection and long MTBF figures provide quiet, dust‑ and splash‑resistant operation in demanding environments.
  • Enterprise connectivity: Wi‑Fi 6, Bluetooth (5.0–5.2 depending on configuration), Gigabit Ethernet, full‑featured USB‑C and powered ports enable seamless peripheral and network integration.
  • Flexible deployment: Configurations range from no‑OS platforms to Intel Core and Celeron processors, enabling customized software stacks and fleet management.
  • Peripheral ready: Powered serial/RJ50, RS‑232 options, cash drawer support and Elo Edge Connect compatibility simplify integration with printers, scanners, EMV readers and other POS devices.

Specifications

  • Brand / Model: Elo VisionTouch I3 Display (Elo I‑Series 3)
  • Form Factor: All‑in‑one (with stand; VESA mounting supported)
  • Display sizes: 15.6", 21.5", 23.8" (model dependent)
  • Display: Full HD 1920 x 1080 IPS
  • Aspect Ratio: 16:9
  • Touch technology: Projected Capacitive (PCAP), 10‑point
  • Display surface: Edge‑to‑edge glass with anti‑glare
  • Processors: Intel options including i7‑1265UL, i3‑1215UL, Celeron 7305L (configuration dependent)
  • RAM: 8 GB, 16 GB (configuration dependent)
  • Storage: SSD (M.2) — 128 GB, 256 GB (configuration dependent)
  • Operating System: No OS (available on some configurations)
  • Security: TPM 2.0
  • Networking: Wi‑Fi 6 (802.11ax), Gigabit Ethernet
  • Wireless: Bluetooth 5.0–5.2 (model dependent)
  • Ports & I/O: USB 3.0, USB‑C (full‑featured), powered USB, powered RJ50 serial / RS‑232 options
  • Peripheral compatibility: Elo Edge Connect for EMV readers, barcode scanners, MSR, cameras, and cash drawer support
  • Durability: Fanless design, IP54 ingress protection, MTBF ~50,000 hours (configuration dependent)
  • Color: Black

Main Features

  • Touch: Yes

  • POS: Yes

  • Screen size: 23 inch

  • Connection: Serial, USB, Ethernet, WLAN/Wi-Fi

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Technical Information
Cooling Fan Fanless
Bluetooth Yes
Bluetooth Standard Bluetooth 5.2
Form Factor All-in-One
Features Edge-to-Edge Glass Design
Processor & Chipset
Processor Manufacturer Intel
Processor Type Core i5
Processor Speed 4.40 GHz
Processor Model i5-1245UL
Processor Cache 12 MB
Memory
Standard Memory 8 GB
Memory Technology DDR5 SDRAM
Storage
Flash Memory Capacity 128 GB
Solid State Drive Capacity 256 GB
Solid State Drive Interface M.2
Display & Graphics
Screen Size 23.8"
Active Display Size (Horizontal) 20.75"
Active Display Size (Vertical) 11.67"
Display Screen Type LED
Panel Technology In-plane Switching Technology (IPS)
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 16:9
Contrast Ratio 1,000:1
Response Time 16 ms
Color Supported 16.7 Million Colors
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Graphics Controller Manufacturer Intel
Graphics Controller Model Xe Graphics
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Serial Port Yes
RJ-50 Yes
Number of Micro USB 2.0 Ports 4
Number of USB 3.0 Ports 4
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Power Description
Power Source
  • AC Power
  • DC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 14.80 lb
Miscellaneous
Ingress Protection (IP) Rating IP54
Energy Star Yes
Documents
ico-plus ico-minus
Product document iseries-3.pdf E608662  (PDF)
