Elo

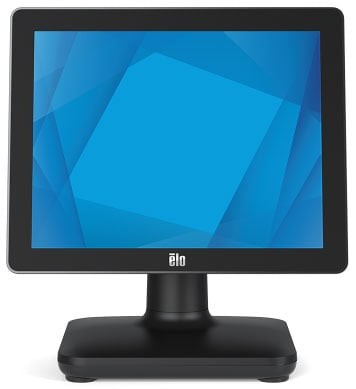

Elo EloPOS System, 39.6 cm (15,6''), Projected Capacitive, SSD, 10 IoT Enterprise

SKU:

E441968

Configured with a hexa-core Intel Core i5 running at 2.10 GHz, the Elo E441968 is a 15.6-inch projected capacitive LED touchscreen POS terminal running Windows 10 on 8 GB of DDR4 SDRAM and a 128 GB SATA SSD. The UHD Graphics 630 controller drives the display, while connectivity spans USB, powered USB, serial, Gigabit Ethernet, wireless LAN, and a dedicated cash drawer port, covering the full range of POS peripheral needs. Splash-proof housing supports continuous public-use environments, and the unit weighs 10.80 lb. The included stand, power supply, and EU power cable allow straightforward deployment, and the system is backed by Elo's three-year warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo E-Series 2 POS System is a purpose-built all-in-one point-of-sale terminal designed for retail, hospitality, and self-service environments where reliability and flexibility are essential. Centered on a 15.6" TFT touchscreen display and driven by an Intel Celeron processor running at 2.70 GHz, it pairs 4 GB DDR4 SDRAM with a 128 GB M.2/SATA SSD to deliver responsive performance for POS applications. An integrated expansion hub in the stand base supports connectivity for cash drawers, printers, barcode scanners, and payment devices, while USB-C output allows a customer-facing display to receive touch, data, and power through a single cable. Gigabit Ethernet keeps the terminal reliably networked, and a retail-hardened, splash-proof enclosure supports demanding commercial use. The system is backed by a standard 3-year warranty.

Main Features

  • Connection: USB, Serial

  • Screen type: No

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Type Core i5
Processor Core Hexa-core (6 Core)
Processor Speed 2.10 GHz
Memory
Standard Memory 8 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface SATA
Display & Graphics
Screen Size 15.6"
Display Screen Type LED
Touchscreen Yes
Graphics Controller Model UHD Graphics 630
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Software
Operating System Windows 10
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 10.80 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document elopos-15-2021.pdf E441968  (PDF)
FAQs
ico-plus ico-minus
What environments is the Elo EloPOS System Touch Screen designed for?
The EloPOS System is purpose-built for point of sale use in traditional retail and self-service applications, and is retail-hardened to withstand continuous public use.
What peripheral connectivity does the Elo EloPOS System Touch Screen offer?
The system includes 3 x USB 3.0, 2 x USB 2.0, 4 x Micro USB 2.0, powered USB ports at 24V and 12V, 2 x RJ45 serial ports, a 12V/24V cash drawer port, 1 x Gigabit LAN, and a full-function USB-C port that carries power up to 27W, USB 3.0, and DisplayPort for connecting a customer-facing display.
Which operating systems are supported on the Elo EloPOS System Touch Screen?
It is available with No OS, which has been pretested with Linux SuSE, Ubuntu, and Red Hat, or with Microsoft Windows 10 IoT Enterprise LTSC 64-bit.
What optional accessories can be added to the Elo EloPOS System Touch Screen?
Elo offers field-installable peripherals including a biometric fingerprint reader, magnetic stripe reader, rear-facing VFD customer display, 2D barcode scanner, 10-inch and 13-inch LCD customer displays, a Dallas Key, and EMV cradles for compatible payment devices.
What is included in the box with the Elo EloPOS System Touch Screen?
Each unit ships with the EloPOS touchcomputer, a NA power cord, an EU power cord, a 180W power adapter, an RJ-45 to DB-9 cable, a cable cover locking screw, a security cover and screws, a cable management kit, and a Quick Installation Guide.
What warranty and operating temperature does the Elo EloPOS System Touch Screen carry?
The system comes with a standard 3-year warranty, extendable up to 5 years, and is rated for operation between 0°C and 35°C (32°F to 95°F).
