Elo

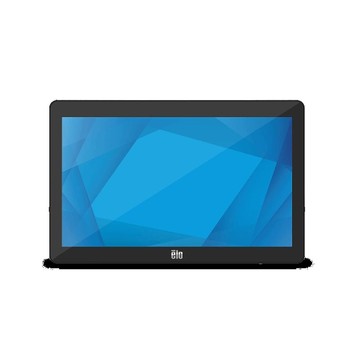

Elo EloPOS System, without stand, 39.6 cm (15,6''), Projected Capacitive, SSD

SKU:

E441010

Configured with 4 GB DDR4 SDRAM and a 128 GB SATA SSD, the Elo E441010 is a standless POS terminal built around a quad-core Intel Celeron running at 2.50 GHz with Intel UHD Graphics 600. Its 15.6-inch projected capacitive LCD touchscreen operates without an attached stand, keeping the 6.40 lb, 15.2-inch-wide chassis compact at 9.8 inches tall and 2.9 inches deep. Connectivity includes Gigabit Ethernet via RJ-45, USB, powered USB, serial, and a cash drawer port, while the 180W power adapter ships in the box alongside both North America and EU power cords and an RJ-45 to DB-9 cable. The E441010 suits retail, hospitality and restaurant environments where a space-efficient footprint is a priority and is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo E-Series 2 POS System is a purpose-built all-in-one point-of-sale terminal designed for retail, hospitality, and self-service environments where reliability and flexibility are essential. Centered on a 15.6" TFT touchscreen display and driven by an Intel Celeron processor running at 2.70 GHz, it pairs 4 GB DDR4 SDRAM with a 128 GB M.2/SATA SSD to deliver responsive performance for POS applications. An integrated expansion hub in the stand base supports connectivity for cash drawers, printers, barcode scanners, and payment devices, while USB-C output allows a customer-facing display to receive touch, data, and power through a single cable. Gigabit Ethernet keeps the terminal reliably networked, and a retail-hardened, splash-proof enclosure supports demanding commercial use. The system is backed by a standard 3-year warranty.

Main Features

  • Connection: USB, Serial

  • Screen type: No

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Manufacturer Intel
Processor Type Celeron
Processor Core Quad-core (4 Core)
Processor Speed 2.50 GHz
Memory
Standard Memory 4 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface SATA
Display & Graphics
Screen Size 15.6"
Display Screen Type LCD
Touchscreen Yes
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics 600
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Physical Characteristics
Product Color Black
Height 9.8"
Width 15.2"
Depth 2.9"
Weight (Approximate) 6.40 lb
Miscellaneous
Package Contents
  • EloPOS E2 POS Terminal
  • North America Power Cord
  • EU Power Cord
  • Power Adapter - 180W
  • Cable RJ-45 to DB-9
  • Cable cover locking screw
  • Quick Installation Guide (QIG)
Country of Origin China
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document elopos-system-elo-pos-datasheet-2.pdf E441010  (PDF) Product document elopos-system-elo-pos-quick-guide-2.pdf E441010  (PDF) Product document elopos-system-elo-pos-user-manual-2.pdf E441010  (PDF) Product document elo_elopos_system.pdf E441010  (PDF)
FAQs
ico-plus ico-minus
What environments is the Elo EloPOS System Touch Screen designed for?
The EloPOS System is purpose-built for point of sale use in traditional retail and self-service applications, and is retail-hardened to withstand continuous public use.
What peripheral connectivity does the Elo EloPOS System Touch Screen offer?
The system includes 3 x USB 3.0, 2 x USB 2.0, 4 x Micro USB 2.0, powered USB ports at 24V and 12V, 2 x RJ45 serial ports, a 12V/24V cash drawer port, 1 x Gigabit LAN, and a full-function USB-C port that carries power up to 27W, USB 3.0, and DisplayPort for connecting a customer-facing display.
Which operating systems are supported on the Elo EloPOS System Touch Screen?
It is available with No OS, which has been pretested with Linux SuSE, Ubuntu, and Red Hat, or with Microsoft Windows 10 IoT Enterprise LTSC 64-bit.
What optional accessories can be added to the Elo EloPOS System Touch Screen?
Elo offers field-installable peripherals including a biometric fingerprint reader, magnetic stripe reader, rear-facing VFD customer display, 2D barcode scanner, 10-inch and 13-inch LCD customer displays, a Dallas Key, and EMV cradles for compatible payment devices.
What is included in the box with the Elo EloPOS System Touch Screen?
Each unit ships with the EloPOS touchcomputer, a NA power cord, an EU power cord, a 180W power adapter, an RJ-45 to DB-9 cable, a cable cover locking screw, a security cover and screws, a cable management kit, and a Quick Installation Guide.
What warranty and operating temperature does the Elo EloPOS System Touch Screen carry?
The system comes with a standard 3-year warranty, extendable up to 5 years, and is rated for operation between 0°C and 35°C (32°F to 95°F).
