Elo

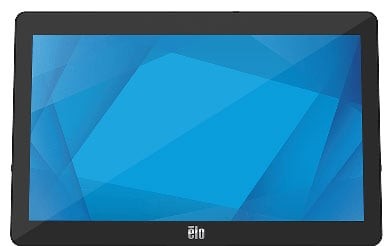

Elo EloPOS System, without stand, 39.6 cm (15,6''), Projected Capacitive, SSD, 10 IoT Enterprise

SKU:

E440808

Fitted with a 128 GB SATA SSD and 4 GB of DDR4 SDRAM, the Elo E440808 is a standless POS terminal built around a 15.6-inch projected capacitive LCD touchscreen and running Windows 10. An Intel Celeron processor drives the system, with graphics handled by the Intel UHD 600. Connectivity spans USB, powered USB, serial, Gigabit Ethernet, wireless LAN, and a dedicated cash drawer port, covering the peripheral range typical of retail checkout and self-service environments. The terminal ships in black and weighs 6.39 lb without a stand, making it suited to pole and wall mount configurations via a standard VESA mounting system. A three-year warranty backs the unit.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo E-Series 2 POS System is a purpose-built all-in-one point-of-sale terminal designed for retail, hospitality, and self-service environments where reliability and flexibility are essential. Centered on a 15.6" TFT touchscreen display and driven by an Intel Celeron processor running at 2.70 GHz, it pairs 4 GB DDR4 SDRAM with a 128 GB M.2/SATA SSD to deliver responsive performance for POS applications. An integrated expansion hub in the stand base supports connectivity for cash drawers, printers, barcode scanners, and payment devices, while USB-C output allows a customer-facing display to receive touch, data, and power through a single cable. Gigabit Ethernet keeps the terminal reliably networked, and a retail-hardened, splash-proof enclosure supports demanding commercial use. The system is backed by a standard 3-year warranty.

Main Features

  • Connection: USB, Serial

  • Screen type: No

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Type Celeron
Memory
Standard Memory 4 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface SATA
Display & Graphics
Screen Size 15.6"
Display Screen Type LCD
Touchscreen Yes
Graphics Controller Model Intel UHD 600
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Software
Operating System Windows 10
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 6.39 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document elopos-15-2021.pdf E440808  (PDF)
FAQs
ico-plus ico-minus
What environments is the Elo EloPOS System Touch Screen designed for?
The EloPOS System is purpose-built for point of sale use in traditional retail and self-service applications, and is retail-hardened to withstand continuous public use.
What peripheral connectivity does the Elo EloPOS System Touch Screen offer?
The system includes 3 x USB 3.0, 2 x USB 2.0, 4 x Micro USB 2.0, powered USB ports at 24V and 12V, 2 x RJ45 serial ports, a 12V/24V cash drawer port, 1 x Gigabit LAN, and a full-function USB-C port that carries power up to 27W, USB 3.0, and DisplayPort for connecting a customer-facing display.
Which operating systems are supported on the Elo EloPOS System Touch Screen?
It is available with No OS, which has been pretested with Linux SuSE, Ubuntu, and Red Hat, or with Microsoft Windows 10 IoT Enterprise LTSC 64-bit.
What optional accessories can be added to the Elo EloPOS System Touch Screen?
Elo offers field-installable peripherals including a biometric fingerprint reader, magnetic stripe reader, rear-facing VFD customer display, 2D barcode scanner, 10-inch and 13-inch LCD customer displays, a Dallas Key, and EMV cradles for compatible payment devices.
What is included in the box with the Elo EloPOS System Touch Screen?
Each unit ships with the EloPOS touchcomputer, a NA power cord, an EU power cord, a 180W power adapter, an RJ-45 to DB-9 cable, a cable cover locking screw, a security cover and screws, a cable management kit, and a Quick Installation Guide.
What warranty and operating temperature does the Elo EloPOS System Touch Screen carry?
The system comes with a standard 3-year warranty, extendable up to 5 years, and is rated for operation between 0°C and 35°C (32°F to 95°F).
