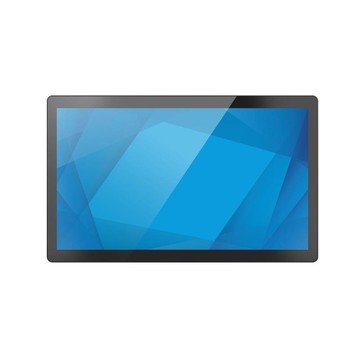

Elo I-Series 3 i5-1245UL Touchscreen Computer 23.8in, 10-touch PCAP, 8GB, 256GB SSD

SKU:

E432771

Fitted with an Intel Core i5-1245UL processor turboing to 4.40 GHz with Intel vPro support, the Elo E432771 is a fanless all-in-one POS terminal built around a 23.8-inch Full HD IPS display with a 10-touch projected capacitive surface, 1,000:1 contrast ratio, 16 ms response time, and 178-degree viewing angles both horizontally and vertically. The unit ships with 8 GB of DDR5 SDRAM expandable to 64 GB, a 256 GB M.2 PCIe SSD, and Intel Iris Xe Graphics, running Windows 10 IoT Enterprise LTSC or Windows 11 IoT Enterprise LTSC. Connectivity spans Gigabit Ethernet, 802.11 a/b/g/n/ac/ax Wi-Fi, Bluetooth 5.3, four USB 3.0 ports, four Micro USB 2.0 Edge Connect ports, one USB-C port, an RJ-50 serial port, and a 3.5 mm audio jack, all powered by a 180W adapter. The black enclosure carries an IP54 ingress rating and weighs 15.65 lb, with 100 mm VESA mounting support. ENERGY STAR 8.0 certified and RoHS compliant, it is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo VisionTouch I3 Display is a professional all‑in‑one touchscreen computer from Elo’s I‑Series 3 family, designed for point‑of‑sale, self‑service kiosks, digital signage and healthcare check‑in stations. Combining a projected capacitive multi‑touch interface with integrated Intel platforms across configurations, it delivers responsive, commercial‑grade interaction and flexible deployment options. Edge‑to‑edge glass, zero‑bezel styling and IP54‑rated, fanless designs reduce maintenance and improve durability in busy environments, while built‑in connectivity — Wi‑Fi 6, Bluetooth, Gigabit Ethernet and full‑featured USB‑C — plus support for peripherals and cash drawers simplifies integration into retail, hospitality and enterprise workflows.

Key Features

  • Accurate multi‑touch: Projected capacitive (PCAP) touch with 10‑point support for precise, simultaneous multiuser input and fast transaction handling.
  • Compact all‑in‑one design: Integrated PC and display reduces footprint and cabling for counter, kiosk or tabletop installations with optional VESA mounting.
  • Commercial reliability: Fanless construction, IP54 ingress protection and long MTBF figures provide quiet, dust‑ and splash‑resistant operation in demanding environments.
  • Enterprise connectivity: Wi‑Fi 6, Bluetooth (5.0–5.2 depending on configuration), Gigabit Ethernet, full‑featured USB‑C and powered ports enable seamless peripheral and network integration.
  • Flexible deployment: Configurations range from no‑OS platforms to Intel Core and Celeron processors, enabling customized software stacks and fleet management.
  • Peripheral ready: Powered serial/RJ50, RS‑232 options, cash drawer support and Elo Edge Connect compatibility simplify integration with printers, scanners, EMV readers and other POS devices.

Specifications

  • Brand / Model: Elo VisionTouch I3 Display (Elo I‑Series 3)
  • Form Factor: All‑in‑one (with stand; VESA mounting supported)
  • Display sizes: 15.6", 21.5", 23.8" (model dependent)
  • Display: Full HD 1920 x 1080 IPS
  • Aspect Ratio: 16:9
  • Touch technology: Projected Capacitive (PCAP), 10‑point
  • Display surface: Edge‑to‑edge glass with anti‑glare
  • Processors: Intel options including i7‑1265UL, i3‑1215UL, Celeron 7305L (configuration dependent)
  • RAM: 8 GB, 16 GB (configuration dependent)
  • Storage: SSD (M.2) — 128 GB, 256 GB (configuration dependent)
  • Operating System: No OS (available on some configurations)
  • Security: TPM 2.0
  • Networking: Wi‑Fi 6 (802.11ax), Gigabit Ethernet
  • Wireless: Bluetooth 5.0–5.2 (model dependent)
  • Ports & I/O: USB 3.0, USB‑C (full‑featured), powered USB, powered RJ50 serial / RS‑232 options
  • Peripheral compatibility: Elo Edge Connect for EMV readers, barcode scanners, MSR, cameras, and cash drawer support
  • Durability: Fanless design, IP54 ingress protection, MTBF ~50,000 hours (configuration dependent)
  • Color: Black

Main Features

  • Touch: Yes

  • POS: Yes

  • Screen size: 24 inch

  • Connection: Ethernet, Serial, USB

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-touch-i-series-3-elo-all-in-one-datasheet.pdf E432771  (PDF) Product document mod-touch-i-series-3-elo-all-in-one-user-manual.pdf E432771  (PDF)
