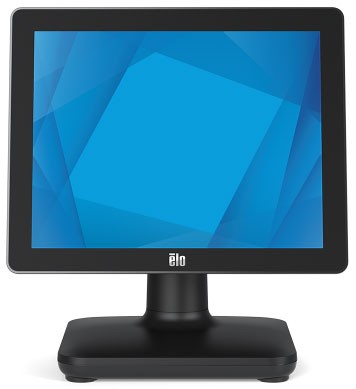

Elo EloPOS TouchPro 15 POS System 15.6in, Intel Celeron J4125, Projected capacitive 10-touch, 8GB, 256GB, Windows 10

SKU:

E397891

Elo E397891 ships with a 256 GB M.2/SATA SSD and 8 GB of DDR4 SDRAM, setting the storage and memory configuration apart within the EloPOS all-in-one family. The 15.6-inch projected capacitive LED display resolves at 1366 x 768 across a 16:9 panel with a 400:1 contrast ratio, 10 ms response time, 90-degree horizontal and 50-degree vertical viewing angles, and support for 10 simultaneous touch points behind edge-to-edge antiglare glass. Processing is handled by an Intel Celeron J4125 running at 2.70 GHz, paired with Intel UHD Graphics 600, under Windows 10 IoT Enterprise LTSC (64-bit). Connectivity spans 3 USB 3.0 ports, 4 Micro USB 2.0 ports, 1 USB Type-C port, a serial port, a cash drawer port, RJ-45 Gigabit Ethernet, wireless LAN, and Bluetooth 5.0. The unit weighs 10.80 lb and is Energy Star qualified, suited to traditional checkout lanes and self-service retail deployments, and backed by a three-year warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The EloTouch Pro 15 family is a commercial-grade all-in-one POS touchscreen platform designed for retail, hospitality and customer-facing service counters that require reliable daily operation and a compact footprint. Combining projected capacitive multi-touch input with zero‑bezel, antiglare displays and integrated I/O hub or wall‑mount options, these systems streamline checkout workflows and peripheral integration. Configurations span Intel Celeron processors with balanced memory and solid‑state storage to suit standard transaction workloads, while sealed touch sensors, TPM security and robust enclosure options support continuous use, simplified maintenance and flexible deployment in busy point‑of‑sale environments.

Key Features

  • Purpose-built POS design: Compact all‑in‑one form factor and optional I/O hub or wall‑mount configurations reduce counter clutter and simplify installations for retail and hospitality.
  • 10‑point projected capacitive touch: PCAP touch technology delivers responsive multi‑touch interaction suited to fast checkout and customer‑facing workflows.
  • Zero‑bezel, antiglare display: Refined front face and antiglare finish improve visibility and provide a modern, durable surface for frequent interaction.
  • Configurable performance: Intel Celeron processor options with 4 GB or 8 GB memory and 128 GB SSD storage offer reliable performance for everyday POS applications.
  • Integrated connectivity & peripherals: Built‑in ports, powered USB options and I/O hub stand support printers, scanners, payment devices and cash drawers for complete checkout solutions.
  • Commercial durability & security: Sealed touchscreen construction, TPM 2.0 support and robust enclosure choices help ensure dependable operation in high‑use environments.

Specifications

  • Brand: Elo
  • Product family: EloTouch Pro 15 / EloPOS 15 All‑in‑One
  • Display size: 15 inch class (variants include 15.0 and 15.6 inch)
  • Aspect ratio: 4:3 (some configurations available in 16:9)
  • Touchscreen technology: Projected capacitive (PCAP)
  • Touch points: 10
  • Display finish: Antiglare
  • Bezel type: Zero‑bezel
  • Display resolution: 1920 x 1080, 1366 x 768, 1024 x 768 (depending on variant)
  • Processor models: Intel Celeron G4900T, Intel Celeron J4105, Celeron (variant dependent)
  • Memory options: 4 GB, 8 GB
  • Maximum memory capacity: 8 GB
  • Storage capacity: 128 GB
  • Storage type: SSD / M.2 SATA SSD
  • Operating system: No OS (configurations available with Windows 10 in select variants)
  • Stand / mount: I/O hub stand; Wall Mount I/O Hub (variant dependent)
  • Security: TPM 2.0 (available on select configurations)
  • Typical power consumption: 30 W
  • Dimensions (example): 14.16 x 15.37 x 8.71 in (with stand)
  • Weight (example): ~11.6 lb (with stand)

Main Features

  • Touch: Yes

  • POS: Yes

  • Screen size: 16 inch

  • Connection: Serial, USB, Bluetooth

  • Screen type: Capacitve

  • Display Resolution: 1366 x 768

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Form Factor All-in-One
Features
  • Anti-glare
  • Edge-to-Edge Glass Design
Processor & Chipset
Processor Type Celeron
Processor Speed 2.70 GHz
Processor Model J4125
Memory
Standard Memory 8 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 256 GB
Solid State Drive Interface M.2/SATA
Display & Graphics
Screen Size 15.6"
Active Display Size (Horizontal) 13.55"
Active Display Size (Vertical) 7.62"
Display Screen Type LED
Screen Mode HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 16:9
Contrast Ratio 400:1
Response Time 10 ms
Color Supported 262,000 Colors
Horizontal Viewing Angle 90°
Vertical Viewing Angle 50°
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics 600
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Number of Micro USB 2.0 Ports 4
Number of USB 3.0 Ports 3
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Software
Operating System Windows 10 IoT Enterprise LTSC (64-bit)
Power Description
Power Source
  • AC Power
  • DC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 10.80 lb
Miscellaneous
Energy Star Yes
