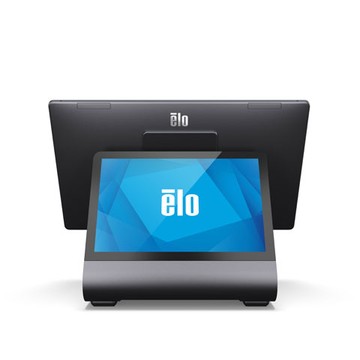

Elo EloPOS Z30, Standard, 39.6 cm (15,6''), Projected Capacitive, Android, dark grey

SKU:

E392186

Powered by a Snapdragon SDA660 octa-core processor, the Elo E392186 all-in-one POS terminal pairs 4 GB of RAM with 64 GB of flash storage and runs Android 10 with Google Mobile Services included. Its 15.6-inch projected capacitive LED display delivers Full HD resolution at a 16:9 aspect ratio, supporting up to 10 simultaneous touch points with a 20 ms response time, 1,000:1 contrast ratio, and 170-degree horizontal and vertical viewing angles across an active panel measuring 13.55 in wide by 7.62 in tall. Connectivity spans four USB Type-A 3.0 ports, one USB-C port, powered USB, a serial port, a cash drawer port, Gigabit Ethernet, Wi-Fi, and Bluetooth 5.0. A built-in 1920 x 1080 @ 30 fps webcam and dual speakers rated at 700 mW are integrated into the dark gray metallic chassis, which weighs 9.60 lb and ships with a 150W power brick, North American and European power cables, a countertop base plate, and a quick install guide. The unit carries a 2-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo EloPOS Z30 is an all-in-one Android POS terminal designed for retailers, hospitality operators, and service environments that demand a compact, capable point-of-sale platform. Built around a Rockchip RK3399 processor with 4 GB of memory and 32 GB of storage, it runs Android 12 and centers on a 15.6" Full HD touchscreen with TouchPro Projected Capacitive technology supporting up to 10 simultaneous touch points — delivering responsive, intuitive operation for cashiers and associates. Connectivity is broad, combining Bluetooth 5.0, Wi-Fi 802.11a/b/g/n/ac, Gigabit Ethernet, four USB-A 3.0 ports, a powered USB 24V port, and an RJ12 serial/cash drawer port, all routed through an integrated I/O hub for a clean counter installation. An optional customer-facing display port adds a second point of engagement, while simplified device management via EloView keeps deployments streamlined across the floor.

Main Features

  • POS: Yes

  • Connection: Serial, USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Form Factor All-in-One
Features Google Mobile Service
Processor & Chipset
Processor Type Snapdragon
Processor Core Octa-core (8 Core)
Processor Model SDA660
Memory
Standard Memory 4 GB
Storage
Flash Memory Capacity 64 GB
Display & Graphics
Screen Size 15.6"
Active Display Size (Horizontal) 13.55"
Active Display Size (Vertical) 7.62"
Display Screen Type LED
Screen Mode Full HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 16:9
Contrast Ratio 1,000:1
Response Time 20 ms
Color Supported 16.7 Million Colors
Horizontal Viewing Angle 170°
Vertical Viewing Angle 170°
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Number of USB Type A 3.0 Ports 4
Number of USB Type C Ports 1
Built-in Devices
Webcam Frame Rate 1920 x 1080 @ 30 fps
Number of Speakers 2
Speaker Power 700 mW
Software
Operating System Android 10
Power Description
Power Source
  • DC Power
  • AC Power
Physical Characteristics
Color Family Gray
Product Color Dark Gray Metallic
Weight (Approximate) 9.60 lb
Miscellaneous
Package Contents
  • EloPOS Z30 POS Terminal
  • North American Power Cable
  • European Power Cable
  • Quick Install Guide
  • 150W Power Brick
  • 2 x Zip Ties
  • 1 x M4x8 mm screw in a plastic bag
  • 1 x M3x6 mm screw in a plastic bag
  • Base Plate - for mounting to a countertop
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document elopos-z30.pdf E392186  (PDF)
