Elo

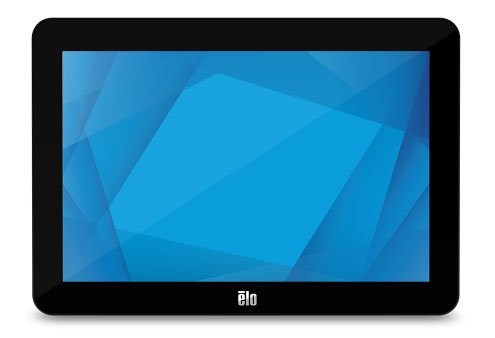

Elo 1002L, Non-touch, 25.4 cm (10''), black

SKU:

E324341

Configured as a non-touch display, the Elo E324341 draws just 7.43 W in operation and drops to 1.26 W in standby, making it one of the more power-efficient options in the 1002L family. The 10.1-inch TFT LED panel resolves to 1280 x 800 at a 16:10 aspect ratio, delivering 350 Nit brightness, an 800:1 native contrast ratio, and 262,000 colors across an active display area of 8.54 in x 5.34 in, with horizontal and vertical viewing angles of 170 degrees and a 29 ms typical response time at 60 Hz. Video connects via one USB Type-C, one HDMI, and one VGA port, with four USB ports total and dual built-in speakers rounding out the interface set. At 1.95 lb and 1.1 in deep, the black chassis is wall, pole, floor, and bracket mountable, with VESA 75 x 75 compatibility. IPX1 and IK04 ratings apply, and the unit operates from 32 F (0 C) to 104 F (40 C) at 20% to 80% non-condensing humidity. RoHS, China RoHS, WEEE, and REACH compliance, alongside Korea E-Standby certification, are backed by a three-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo M-Series 1502L is a 15.6-inch LED touchscreen monitor built for retail, hospitality, and point-of-sale environments where reliable, high-quality interactive displays are essential. Designed for continuous public use, it features a Full HD 1920 x 1080 resolution panel with edge-to-edge glass, delivering sharp, engaging visuals at 300 Nit brightness and a 700:1 contrast ratio. The IntelliTouch Pro Projected Capacitive touchscreen supports 10 simultaneous touches with no calibration required, enabling a fluid, tablet-like experience for both staff and customers. With HDMI, VGA, and USB connectivity, integration into existing POS infrastructure is straightforward. VESA-compatible mounting accommodates wall, pole, and desktop installations, and an operating power consumption of just 8.70 W keeps energy costs low across high-uptime deployments.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Number of Screens 1
Screen Size Class 10"
Viewable Screen Size 10.1"
Screen Mode WXGA
Panel Technology Thin Film Transistor (TFT)
Response Time 29 ms
Response Time Details 29 ms Typical
Aspect Ratio 16:10
Horizontal Viewing Angle 170°
Vertical Viewing Angle 170°
Mount Type
  • Wall Mountable
  • Floor Mountable
  • Bracket Mount
  • Pole-mountable
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
  • OSD/Power Lock
  • Wide Viewing Angle
Horizontal Frequency 31.50 kHz to 82 kHz
Vertical Frequency 60 Hz
Ingress Protection (IP) Rating IPX1
Impact Protection (IK) Rating IK04
Active Display Area (H x V) 8.54" x 5.34"
Video
Maximum Resolution 1280 x 800
Standard Refresh Rate 60 Hz
Color Supported 262,000 Colors
Native Contrast Ratio 800:1
Brightness 350 Nit
Audio
Number of Speakers 2
Speakers Yes
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
USB Type-C Yes
Total Number of HDMI Ports 1
Number of USB Ports 4
Number of VGA Ports 1
Total Number of USB Type-C Ports 1
Environmental Conditions
Operating Temperature Range 32°F (0°C) to 104°F (40°C)
Operating Humidity Range 20% to 80% (Non-condensing)
Power Description
Operating Power Consumption 7.43 W
Standby Power Consumption 1.26 W
Off-Mode Power Consumption 200 mW
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Height 7"
Width 10"
Depth 1.1"
Weight (Approximate) 1.95 lb
Miscellaneous
Package Contents
  • 1002L Widescreen LED Monitor
  • HDMI Cable
  • USB Cable (USB Type-A to Type-C)
  • Quick Install Guide
  • EEI Label
  • Power Brick
  • NA Power Cable
  • EU Power Cable
  • 2 x Cable Clamps
  • 2 x Tie Wraps
  • 3 x Screws (M3x8mm) for Cable Clamps
  • 2 x Screws (M3x10mm) for Cable Doors
Environmentally Friendly Yes
Energy Efficiency Compliance Korea E-Standby
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1002l-2021.pdf E324341  (PDF)
FAQs
ico-plus ico-minus
What touch technology does the Elo 1502L use, and how many simultaneous touch points does it support?
The Elo 1502L uses TouchPro Projected Capacitive (PCAP) technology and supports up to 10 simultaneous touch points. No calibration is required for this touch technology, and it works with Windows HID drivers on Windows 7 and 8 without additional software.
What display resolutions are available on the Elo 1502L, and how does brightness differ between them?
The Elo 1502L is available in a Full HD model with a native resolution of 1920 x 1080 and a panel brightness of 300 nits, and an HD model with a native resolution of 1366 x 768 and a panel brightness of 220 nits. Both models have a 15.6-inch diagonal screen with a 16:9 aspect ratio.
What video and connectivity inputs does the Elo 1502L support?
The Elo 1502L supports HDMI and Mini-VGA video inputs, along with a USB connection for touch. The monitor also includes an audio input jack and built-in 2 x 2W internal speakers.
What mounting options are available for the Elo 1502L touchscreen monitor?
The Elo 1502L offers a VESA 4-hole 75 mm and 100 mm mounting interface on the rear of the unit, supporting wall mount and pole mount installations. The included stand can also be configured in either a low-profile hostess position or an upright position for desktop use.
What optional peripherals can be added to the Elo 1502L for retail and POS deployments?
Optional accessories include a Magnetic Stripe Reader, NFC reader, barcode scanner, and VFD customer display, all designed for user installation without external brackets. Pole mounts, a wall mount, floor stand, and extended cable kits are also available separately.
What warranty does the Elo 1502L carry, and are extended coverage options available?
The Elo 1502L includes a 3-year standard warranty, with extended coverage options available up to 5 years, including configurations with advance unit replacement. The monitor also has a demonstrated MTBF of 50,000 hours.
