Elo

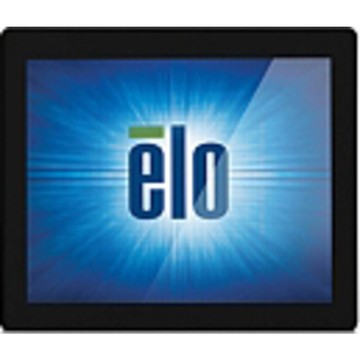

Elo 1990L, 48,3cm (19 ''), TI

SKU:

E197256

Fitted with an IntelliTouch Surface Wave touchscreen, the Elo E197256 is a 19-inch open-frame LCD touchmonitor built around a 5:4 aspect ratio and a native resolution of 1280 x 1024 in SXGA mode. It delivers 250 Nit brightness and a 1,000:1 contrast ratio across 16.7 million colors, with a 5 ms response time suited to interactive applications. An LED backlight holds operating power consumption to 18 W. The touchscreen is sealed against dirt, dust and liquids, simplifying integration into enclosures for kiosks, retail self-service, casino and amusement, and industrial floor automation. Connectivity covers USB, VGA and DisplayPort, and the 100 x 100 VESA mount standard supports rack, flush and front mounting configurations. The black chassis measures 16.3 in wide by 13.5 in tall by 2 in deep and weighs 10.14 lb.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo 1590L 15-inch open-frame LCD touch display offers an exceptional touchscreen experience, tailored for kiosks, retail, industrial automation, and gaming applications. Designed with Elo's renowned reliability, this display features an energy-efficient LED backlight for lower heat output and power consumption. The Elo 1590L combines advanced multi-touch technology with various touch options, ensuring accuracy and durability. With easy integration and a sealed touchscreen against dirt and moisture, this display is a versatile choice for businesses seeking quality and performance at an economical price point.


Key Features
  • Choice of Touch Technologies: Projected Capacitive, IntelliTouch SAW, SecureTouch, and AccuTouch.
  • Sealed Touchscreen: Protection against dirt, dust, and liquids for easier integration.
  • Vivid Image Clarity: Outstanding clarity and light transmission for precise touch responses.
  • Energy-efficient: State-of-the-art LED backlight reduces electricity use and heat generation.
  • Durable Build: Designed for long-lasting performance with stringent testing and support.

Specifications
  • Model: 1590L
  • Color: Black
  • Active Display Area: 304 x 228 mm (12 x 9 inches)
  • Diagonal: 15"
  • Aspect Ratio: 4:3
  • Native Resolution: 1024 x 768 at 60, 75 Hz
  • Brightness: 250 nits (LCD Panel)
  • Viewing Angle: Horizontal: 80°/160°; Vertical: 70°/140°
  • Weight: Unpackaged: 6.4 lbs (2.9 kg); Packaged: 7.7 lbs (3.4 kg)
  • Warranty: 3 years
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating: 20% to 80%; Storage: 10% to 95%

Main Features

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 19"
Viewable Screen Size 19"
Screen Mode SXGA
Response Time 5 ms
Aspect Ratio 5:4
Mount Type
  • Rack-mountable
  • Flush Mount
  • Front Mount
Backlight Technology LED
Video
Maximum Resolution 1280 x 1024
Color Supported 16.7 Million Colors
Contrast Ratio 1,000:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Type IntelliTouch Surface Wave
Interfaces/Ports
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 18 W
Physical Characteristics
VESA Mount Compatible Yes
Product Color Black
Height 13.5"
Width 16.3"
Depth 2"
Weight (Approximate) 10.14 lb
