Elo

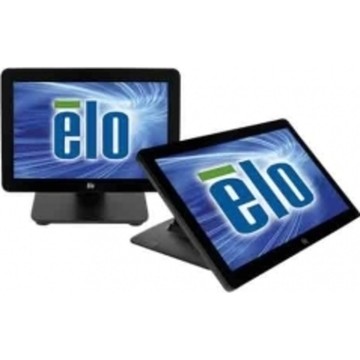

Elo 1002L, Non-touch, 25.4 cm (10''), black

SKU:

E138394

At 5.60 W operating power consumption, the Elo E138394 is a compact non-touch LCD monitor built for space-conscious POS and kiosk environments. Its 10.1-inch LED-backlit panel delivers a 1280 x 800 maximum resolution across a 16:10 aspect ratio, with 350 Nit brightness and a 700:1 contrast ratio reproducing 262,000 colors. A 25 ms response time keeps motion rendering stable, while VGA, HDMI and USB connectivity cover a range of source devices. The chassis measures 10 in wide, 4.6 in tall and 1.1 in deep in black, and VESA mount compatibility allows wall or arm installation. Integrated speakers are included. The E138394 is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo M-Series 1502L is a 15.6-inch LED touchscreen monitor built for retail, hospitality, and point-of-sale environments where reliable, high-quality interactive displays are essential. Designed for continuous public use, it features a Full HD 1920 x 1080 resolution panel with edge-to-edge glass, delivering sharp, engaging visuals at 300 Nit brightness and a 700:1 contrast ratio. The IntelliTouch Pro Projected Capacitive touchscreen supports 10 simultaneous touches with no calibration required, enabling a fluid, tablet-like experience for both staff and customers. With HDMI, VGA, and USB connectivity, integration into existing POS infrastructure is straightforward. VESA-compatible mounting accommodates wall, pole, and desktop installations, and an operating power consumption of just 8.70 W keeps energy costs low across high-uptime deployments.

Main Features

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Number of Screens 1
Viewable Screen Size 10.1"
Screen Mode SXGA
Response Time 25 ms
Aspect Ratio 16:10
Backlight Technology LED
Video
Maximum Resolution 1280 x 800
Color Supported 262,000 Colors
Contrast Ratio 700:1
Brightness 350 Nit
Audio
Speakers Yes
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Power Description
Operating Power Consumption 5.60 W
Physical Characteristics
VESA Mount Compatible Yes
Color Black
Height 4.6"
Width 10"
Depth 1.1"
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document mod-1002l-1502l-2002l-elo-monitor-elo-1002l-datasheet.pdf E138394  (PDF) Product document mod-1002l-1502l-2002l-elo-monitor-elo-1502l-datasheet.pdf E138394  (PDF) Product document mod-1002l-1502l-2002l-elo-monitor-elo-2002l-datasheet.pdf E138394  (PDF) Product document mod-1002l-1502l-2002l-elo-monitor-user-manual.pdf E138394  (PDF) Product document elo-1002l-1502l.pdf E138394  (PDF)
FAQs
ico-plus ico-minus
What touch technology does the Elo 1502L use, and how many simultaneous touch points does it support?
The Elo 1502L uses TouchPro Projected Capacitive (PCAP) technology and supports up to 10 simultaneous touch points. No calibration is required for this touch technology, and it works with Windows HID drivers on Windows 7 and 8 without additional software.
What display resolutions are available on the Elo 1502L, and how does brightness differ between them?
The Elo 1502L is available in a Full HD model with a native resolution of 1920 x 1080 and a panel brightness of 300 nits, and an HD model with a native resolution of 1366 x 768 and a panel brightness of 220 nits. Both models have a 15.6-inch diagonal screen with a 16:9 aspect ratio.
What video and connectivity inputs does the Elo 1502L support?
The Elo 1502L supports HDMI and Mini-VGA video inputs, along with a USB connection for touch. The monitor also includes an audio input jack and built-in 2 x 2W internal speakers.
What mounting options are available for the Elo 1502L touchscreen monitor?
The Elo 1502L offers a VESA 4-hole 75 mm and 100 mm mounting interface on the rear of the unit, supporting wall mount and pole mount installations. The included stand can also be configured in either a low-profile hostess position or an upright position for desktop use.
What optional peripherals can be added to the Elo 1502L for retail and POS deployments?
Optional accessories include a Magnetic Stripe Reader, NFC reader, barcode scanner, and VFD customer display, all designed for user installation without external brackets. Pole mounts, a wall mount, floor stand, and extended cable kits are also available separately.
What warranty does the Elo 1502L carry, and are extended coverage options available?
The Elo 1502L includes a 3-year standard warranty, with extended coverage options available up to 5 years, including configurations with advance unit replacement. The monitor also has a demonstrated MTBF of 50,000 hours.
