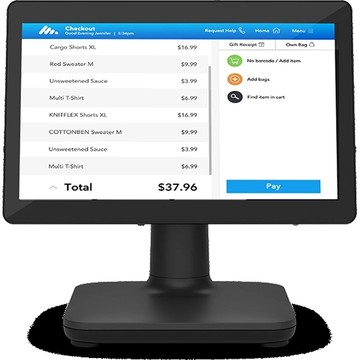

Elo E-Series 2, 39.6 cm (15,6''), Projected Capacitive, SSD, black

SKU:

E135925

Fitted with a 128 GB M.2/SATA SSD and 4 GB DDR4 SDRAM, the Elo E135925 is a black projected capacitive POS terminal built around a 15.6-inch TFT touchscreen. A Celeron processor running at 2.70 GHz drives the system alongside Intel UHD Graphics 600, while storage and memory keep routine retail and hospitality workloads running without compromise. Connectivity includes USB with powered USB support, a cash drawer port, and Gigabit Ethernet via RJ-45, with USB-C available for attaching a customer-facing display over a single cable. The expansion hub integrated into the stand base accommodates additional POS peripherals, and up to four Elo Edge Connect accessories can be attached directly to the display edge. The unit draws from AC power, weighs 10.40 lb, and ships in black. The E-Series 2 family is backed by a three-year warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo E-Series 2 POS System is a purpose-built all-in-one point-of-sale terminal designed for retail, hospitality, and self-service environments where reliability and flexibility are essential. Centered on a 15.6" TFT touchscreen display and driven by an Intel Celeron processor running at 2.70 GHz, it pairs 4 GB DDR4 SDRAM with a 128 GB M.2/SATA SSD to deliver responsive performance for POS applications. An integrated expansion hub in the stand base supports connectivity for cash drawers, printers, barcode scanners, and payment devices, while USB-C output allows a customer-facing display to receive touch, data, and power through a single cable. Gigabit Ethernet keeps the terminal reliably networked, and a retail-hardened, splash-proof enclosure supports demanding commercial use. The system is backed by a standard 3-year warranty.

Main Features

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Manufacturer Intel
Processor Type Celeron
Processor Speed 2.70 GHz
Memory
Standard Memory 4 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface M.2/SATA
Display & Graphics
Screen Size 15.6"
Display Screen Type TFT
Touchscreen Yes
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics 600
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Power Description
Power Source AC Power
Physical Characteristics
Product Color Black
Weight (Approximate) 10.40 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document elopos-system-elo-pos-datasheet-2.pdf E135925  (PDF) Product document elopos-system-elo-pos-quick-guide-2.pdf E135925  (PDF) Product document elopos-system-elo-pos-user-manual-2.pdf E135925  (PDF) Product document elo_elopos_system.pdf E135925  (PDF)
FAQs
ico-plus ico-minus
What environments is the Elo EloPOS System Touch Screen designed for?
The EloPOS System is purpose-built for point of sale use in traditional retail and self-service applications, and is retail-hardened to withstand continuous public use.
What peripheral connectivity does the Elo EloPOS System Touch Screen offer?
The system includes 3 x USB 3.0, 2 x USB 2.0, 4 x Micro USB 2.0, powered USB ports at 24V and 12V, 2 x RJ45 serial ports, a 12V/24V cash drawer port, 1 x Gigabit LAN, and a full-function USB-C port that carries power up to 27W, USB 3.0, and DisplayPort for connecting a customer-facing display.
Which operating systems are supported on the Elo EloPOS System Touch Screen?
It is available with No OS, which has been pretested with Linux SuSE, Ubuntu, and Red Hat, or with Microsoft Windows 10 IoT Enterprise LTSC 64-bit.
What optional accessories can be added to the Elo EloPOS System Touch Screen?
Elo offers field-installable peripherals including a biometric fingerprint reader, magnetic stripe reader, rear-facing VFD customer display, 2D barcode scanner, 10-inch and 13-inch LCD customer displays, a Dallas Key, and EMV cradles for compatible payment devices.
What is included in the box with the Elo EloPOS System Touch Screen?
Each unit ships with the EloPOS touchcomputer, a NA power cord, an EU power cord, a 180W power adapter, an RJ-45 to DB-9 cable, a cable cover locking screw, a security cover and screws, a cable management kit, and a Quick Installation Guide.
What warranty and operating temperature does the Elo EloPOS System Touch Screen carry?
The system comes with a standard 3-year warranty, extendable up to 5 years, and is rated for operation between 0°C and 35°C (32°F to 95°F).
