Elo

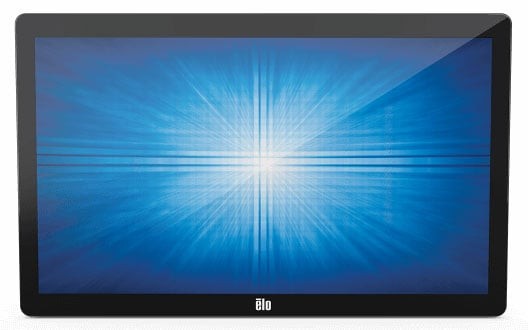

Elo 2402L, without stand, 61 cm (24''), Projected Capacitive, Full HD

SKU:

E126288

Configured without a stand, the Elo E126288 ships as a 23.8-inch TouchPro Projected Capacitive LCD touchscreen monitor suited for point-of-sale, point-of-information, signage and hospitality installations. Its multi-touch panel resolves 1920 x 1080 at a 16:9 aspect ratio, rendering 16.7 million colors at 250 Nit brightness against a native contrast ratio of 1,000:1, with a 15 ms response time and a 75 Hz standard refresh rate driven by LED backlighting. Horizontal sync spans 30 kHz to 82 kHz and vertical frequency runs 50 Hz to 75 Hz. Connectivity covers HDMI, VGA and USB, and built-in speakers are included. The panel measures 22.6 in wide by 13.3 in tall and 1.7 in deep, weighs 11.95 lb and draws 25.50 W during operation. VESA 100 x 100 compatibility supports wall, shelf and pole mounting configurations. The unit is backed by a 3-year standard warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1502L is a 15.6" Full HD LCD touchscreen monitor designed for businesses deploying point-of-sale terminals, self-service kiosks, customer-facing displays, and hospitality applications. Built on Elo's Projected Capacitive (PCAP) multi-touch technology, it supports simultaneous touch input and delivers a 1920 x 1080 resolution across a 16:9 panel with LED backlighting, 700:1 native contrast ratio, and wide 160° horizontal and vertical viewing angles with an anti-glare surface. A single USB Type-C connection carries touch, video, and power, reducing cable clutter and simplifying installation, while HDMI and VGA ports ensure compatibility with existing equipment. The built-in USB hub, integrated speakers, and VESA 100 x 100 mount compatibility — alongside pole, shelf, and wall mount support — give IT teams maximum deployment flexibility across retail, hospitality, and enterprise environments.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 24"
Viewable Screen Size 23.8"
Screen Mode Full HD
Response Time 15 ms
Aspect Ratio 16:9
Mount Type
  • Wall Mountable
  • Shelf Mount
  • Pole Mount
Backlight Technology LED
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Video
Maximum Resolution 1920 x 1080
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 250 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Power Description
Operating Power Consumption 25.50 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Color Family Black
Product Color Black
Height 13.3"
Width 22.6"
Depth 1.7"
Weight (Approximate) 11.95 lb
Miscellaneous
Country of Origin China
Documents
ico-plus ico-minus
Product document 2402l.pdf E126288 Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-19inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-22inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-24inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-datasheet-elo-02-series-27inch.pdf TOUCH-SOLUTIONS-02-SERIES Product document touch-solutions-02-series-elo-pos-user-manual.pdf TOUCH-SOLUTIONS-02-SERIES
FAQs
ico-plus ico-minus
What touch technology does the Elo 02-Series 1302L use, and how many simultaneous touches does it support?
The Elo 1302L uses Elo's TouchPro PCAP (projected capacitive) technology with edge-to-edge glass and supports up to 10 simultaneous touches.
What video and data connectivity options are available on the Elo 02-Series 1302L?
The 1302L offers USB Type-C, which carries power, touch, and video over a single cable, as well as HDMI and VGA inputs for use with systems that do not have USB Type-C.
What is the native display resolution and brightness of the Elo 1302L?
The 1302L has a 13.3-inch active matrix TFT LCD panel with a native resolution of 1920 x 1080 at a 16:9 aspect ratio, with panel brightness rated at 300 nits and 270 nits when measured through the PCAP touch layer.
What input types does the Elo 1302L touchscreen recognize?
The 1302L is compatible with finger, glove, and stylus inputs.
What mounting options are supported by the Elo 02-Series 1302L?
The 1302L supports stand, wall, and pole mount configurations, giving integrators flexibility for POS counters, kiosk enclosures, and customer-facing installations.
What warranty does the Elo 02-Series 1302L carry?
The Elo 1302L is backed by a three-year standard warranty.
