Elo

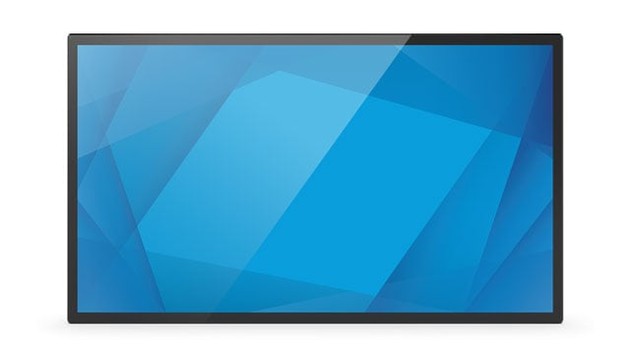

Elo 5554L, 55'', Interactive Display, TouchPro PCAP, anti-glare

SKU:

E104315

Elo 5554L 55-inch wide LCD Monitor, 4K UHD, HDMI 2.0 & DisplayPort 1.4, Projected Capacitive 40-Touch, Anti-Glare Glass, USB, Gray. ET5554L-2UWA-1-MT-ZB-GY-G
Description
ico-plus ico-minus

The Elo 7001LT Digital Signage Display delivers a stunning 70-inch interactive experience that enhances brand engagement across various commercial environments. Its sleek design, featuring a thin profile of just 3.7 inches, is perfect for applications including wayfinding and presentations. With an advanced infrared touchscreen accommodating up to ten simultaneous touches, this display is engineered for intuitive user interaction. Ideal for retail, hospitality, and educational settings, the 7001LT offers bright visuals with a 500 nit LED panel, ensuring visibility even in well-lit areas.


Key Features:
  • Professional-grade hardware with durable tempered glass
  • ADA compliant design for wall mounting
  • Integrated all-in-one computer options with Intel Core i3/i5 processors
  • Multi-user interaction with up to ten simultaneous touches
  • Remote management capability and support for cloud applications
  • Flexible mounting options in portrait, landscape, or tabletop orientations

Specifications:
  • Model: 7001LT
  • Form Factor: Interactive Digital Signage
  • Active Display Area: 60.6" x 33.7" (1538.9mm x 865.6mm)
  • Dimensions: 62.9" x 3.7" x 36.4" (1600mm x 94mm x 925mm)
  • Display Technology: Active matrix TFT LCD with LED backlight
  • Brightness: 500 nits
  • Native Resolution: 1920x1080 (Full HD)
  • Weight: 149.5 lb (67.8 kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Warranty: 3 years standard, with optional extended warranty

Main Features

  • Touch: Yes

  • Connection: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Impact Protection (IK) Rating IK07
Operation Hours 24 Hours/7 Days
Display & Graphics
Number of Screens 1
Viewable Screen Size 54.60"
Display Screen Type LCD
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 40
Display Resolution 3840 x 2160
Response Time 8 ms
Aspect Ratio 16:9
Orientation Landscape/Portrait
Video
Scan Format 2160p
Native Contrast Ratio 1,100:1
Color Depth 10-bit
Brightness 430 Nit
Network & Communication
Ethernet Yes
Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
USB Type-C Yes
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 140°F (60°C)
Minimum Operating Humidity 20%
Maximum Operating Humidity 80%
Minimum Storage Humidity 10%
Maximum Storage Humidity 95%
Physical Characteristics
Color Family Gray
Product Color Gray
Bezel Color Black
VESA Mount Standard 600 x 600
Mount Type Table Mount
Height 29.2"
Width 50"
Depth 2.3"
Weight (Approximate) 81.10 lb
Miscellaneous
Application/Usage Commercial
Documents
ico-plus ico-minus
Product document 5554l.pdf E104315 Product document mod-ids-elo-digital-signane-datasheet-1.pdf MOD-IDS
