Elo

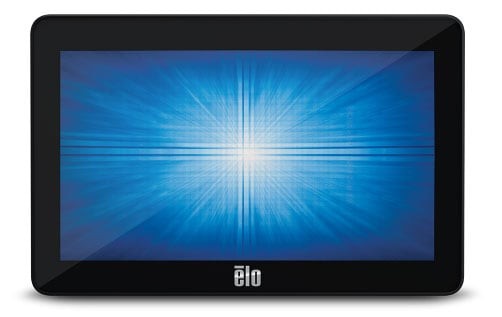

Elo 0702L, 7'' Touchscreen Monitor, Projected Capacitive

SKU:

E796382

Elo's E796382 delivers 10-point TouchPro Projected Capacitive touch on a 7-inch TFT LED-backlit panel, resolving at 800 x 480 across a 5:3 aspect ratio with 500 Nit brightness and a 500:1 native contrast ratio. DisplayLink technology consolidates power, video and touch into a single USB connection, eliminating the need for a separate power adapter and reducing cable count to one. At just 0.7 inch deep and 12.32 oz, the monitor measures 7.1 in wide by 4.6 in tall and draws only 3.70 W during operation. A 25 ms typical response time, 150-degree horizontal and 120-degree vertical viewing angles, and an anti-glare surface support customer-facing POS, signage and hospitality deployments, while VESA 75 x 75 compatibility enables pole, shelf and wall mounting. The package includes a Micro USB Y-cable and Quick Install Guide, and the unit is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 0702L 7-inch touchscreen monitor is the perfect solution for interactive applications, combining state-of-the-art TouchPro® PCAP technology with an edge-to-edge glass design. Its compact and sleek profile allows for easy integration into point-of-sale systems, brand loyalty programs, information kiosks, and more. Supporting up to 10 simultaneous touches, this monitor ensures quick and responsive interactions, and the DisplayLink technology simplifies connectivity with power, video, and touch through a single cable. Ideal for both commercial and industrial environments, it is backed by a robust three-year warranty.
Key features:
  • High-performance 7-inch LCD touchscreen with edge-to-edge design
  • Supports up to 10 simultaneous touches for enhanced interactivity
  • Compact form factor at just over half an inch thin
  • Versatile mounting options including VESA mounts
  • Compatible with finger, glove, and stylus
  • Three-year warranty for peace of mind

Specifications:
  • Model Name: 0702L
  • Diagonal Size: 7 inches / 177.8 mm
  • Active Touch Area: 6.07" x 3.38" / 154.08 mm x 85.92 mm
  • LCD Technology: Active matrix TFT LCD
  • Touch Technology: PCAP
  • Aspect Ratio: 5:3
  • Native Resolution: 800 x 480
  • Brightness: 500 nits (Panel), 430 nits (with PCAP)
  • Viewing Angle: 150° (horizontal), 120° (vertical)
  • Contrast Ratio: 500:1
  • I/O Ports: 1 x Micro USB (DisplayLink)
  • Dimensions: 4.61" x 7.11" x 0.7" / 117.22 mm x 180.58 mm x 17.7 mm
  • Weight: Unpackaged - 0.77 lbs / 0.35 kg
  • Temperature Range: Operating: 0°C to 40°C / Storage: -20°C to 60°C
  • Humidity: Operating: 20% - 80% / Storage: 10%-95%
  • Ingress Protection: IP54 and IP65

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 7"
Viewable Screen Size 7"
Screen Mode WVGA
Panel Technology Thin Film Transistor (TFT)
Response Time 25 ms
Response Time Details 25 ms Typical
Aspect Ratio 5:3
Horizontal Viewing Angle 150°
Vertical Viewing Angle 120°
Mount Type
  • Pole Mount
  • Shelf Mount
  • Wall Mountable
Backlight Technology LED
Features Anti-glare
Horizontal Frequency 31.50 kHz
Vertical Frequency 60 Hz
Video
Maximum Resolution 800 x 480
Color Supported 16.2 Million Colors
Native Contrast Ratio 500:1
Brightness 500 Nit
Touchscreen Information
Touchscreen Type TouchPro Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
USB Yes
Number of USB Ports 1
Power Description
Operating Power Consumption 3.70 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 4.6"
Width 7.1"
Depth 0.7"
Weight (Approximate) 12.32 oz
Miscellaneous
Package Contents
  • 0702L 7" Touchscreen Monitor
  • Micro USB Y-cable
  • Quick Install Guide
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 0702l-2021.pdf E796382 Product document mod-0700l-elo-touch-screens-datasheet.pdf MOD-0700L Product document mod-0700l-elo-touch-screens-user-manual.pdf MOD-0700L
