Datamax

OC3, RS-232, 802.11b/g U.S.

SKU:

200336-100

Direct Thermal Portable Printer, 802.11b-g
Description
ico-plus ico-minus

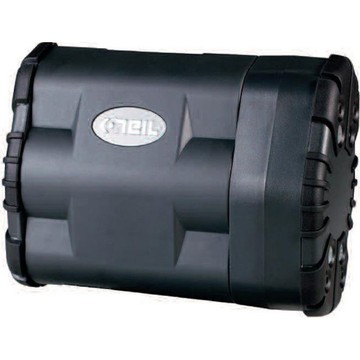

The Datamax-O'Neil OC3 Portable Barcode Printer is the epitome of ergonomic design and advanced printing technology. Lightweight and compact, this thermal printer is perfect for various applications in retail, hospitality, healthcare, and law enforcement. It prints labels and receipts up to 3 inches wide, enhancing customer service with mobile point-of-sale capabilities. The OC3 features both **802.11b/g** and **Bluetooth®** connectivity, enabling seamless wireless operations. With intelligent power management, exceptional print clarity, and a two-year warranty, this portable printer is built to meet the demands of today’s fast-paced businesses.

Key Features:
  • Compact and Ergonomic Design: 35% smaller than competitors for maximum portability.
  • Wireless Connectivity: Supports both **802.11b/g** and **Bluetooth®** networking.
  • Exceptional Print Quality: 203 dpi resolution for sharp graphics and barcodes.
  • Long Battery Life: Prints up to 5,304 labels on a single charge.
  • Two-Year Warranty: Industry-leading warranty for peace of mind.


Specifications:
  • Dimensions: 6.54" x 4.906" x 2.75"
  • Weight: 21.41 oz (printer only)
  • Power Source: 7.2V Lithium-Ion (2200 mAh)
  • Print Speed: 2" per second
  • Operating Temperature: -4° F to 122° F
  • Memory: Flash: 4 MBytes, RAM: 2 MBytes
  • Battery Life: Approx. 10+ hours on a single charge
  • Network Compatibility: IEEE 802.11b/g for wireless printing
  • Label Width: 1" to 3"
  • Supported Fonts: Various including Bitstream® bitmap fonts

Main Features

  • Equipment Format: Mobile

  • Connection: Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 3 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.84"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • Aztec Code
  • PDF-417
  • QR Code
Features Belt Clip
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 2 MB
Flash Memory 4 MB
Interfaces/Ports
Serial Port Yes
Network & Communication
Wireless LAN Yes
Media Types & Handling
Media Type
  • Receipt
  • Synthetic Media
  • UV Coated Media
  • Label
Media Size
  • Custom Size - 3.25" - Roll Paper
  • 3.25" x Roll Paper
Maximum Roll Diameter 2.25"
Maximum Label Width 3"
Label Core Size 1"
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Capacity 2200 mAh
Physical Characteristics
Form Factor Portable
Height 2.8"
Width 6.5"
Depth 4.9"
Miscellaneous
Package Contents
  • OC3 Label Printer
  • Battery
  • Roll of Media
  • Swivel Belt Clip
Additional Information
  • External DC jack, 12-15V, built-in spike and surge protection
  • External charge contacts, 12 -15V, built-in spike and surge protection
  • Prints approx. 2,544 - 2" x 1.125" labels on a single battery charge (22.1 hours)
Platform Supported PC
Certifications & Standards
  • FCC B
  • CE
  • UL/cUL
  • RoHS
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document datamax-oc-series.pdf 200336-100 Product document datamax-oc-series.pdf MOD-OC-SERIES
