Datamax

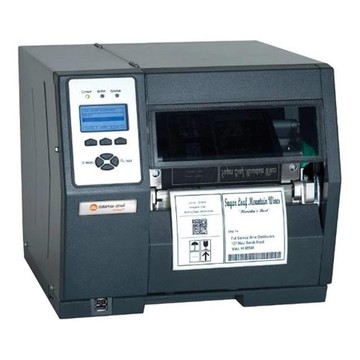

H-6210 - 6inch-203 DPI, 10 IPS, TT Printer; 110v: U.S. Plug, 3.0inch Metal Media Hub

SKU:

C82-00-48000004

The H-Class is a rugged, versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications. It's ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services. Specs at-a-glance: - Direct thermal, thermal transfer (optional) - 8.52'' [216.4mm] maximum print width - 12 ips [304 mm/s] maximum print speed - 203 dpi [8 dots/mm], 300 dpi [12 dots/mm] optional resolution - Serial, parallel, USB, Ethernet wired LAN, wireless 802.11b/g (optional) - Available with RFID
Description
ico-plus ico-minus
Resolución: 203 ppp. Memoria: 8 MB de Flash, 16 MB de SDRAM. Anchura de impresión: 167,9mm / 6.61''. Velocidad de impresión: 10 pulgadas por segundo. Conectividad: Puerto paralelo Centronics® (cumple con IEEE 1284), RS232/422 (de 2.400 a 38.400 BPS), Ethernet, USB, interfaz GPIO. Lenguaje: Datamax Printer Language (DPL)

Main Features

  • Equipment Format: Industrial

  • Rugged: Industrial

  • Connection: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Maximum Mono Print Speed 10 in/s
Maximum Print Width 6.61"
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 16 MB
Flash Memory 8 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Media Types & Handling
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter 8"
Maximum Label Width 6.70"
Label Core Size 3"
Ribbon Core Size 1"
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 13"
Width 15"
Depth 18.9"
Miscellaneous
Package Contents
  • H-Class 6210 Label Printer
  • Black power cord w/U.S. plug
Cables Included AC
Certifications & Standards

Safety Standards:

  • FCC
  • CE
