Datamax

DATAMAX-O'NEIL, OC3, MOBILE PRINTER, 3'', DIRECT THERMAL, SERIAL, 802.11B/G, Card Reader, 4MB FLASH MEMORY, 2MB RAM, 1 YEAR WARRANTY, BATTERY, PAPER, SWIVEL BELT CLIP, REQUIRES AC ADAPTER 220515-100

SKU:

200337-100

MOBILE PRINTER, 3", DIRECT THERMAL, SERIAL, 802.11B/G, CARD READER, 4MB FLASH MEMORY, 2MB RAM, 1 YEAR WARRANTY, BATTERY, PAPER, SWIVEL BELT CLIP, REQUIRES AC ADAPTER 220515-100
Prices could not be updated.
Description
ico-plus ico-minus

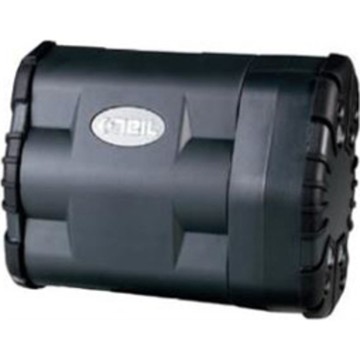

The Datamax-O'Neil OC3 Portable Barcode Printer is the epitome of ergonomic design and advanced printing technology. Lightweight and compact, this thermal printer is perfect for various applications in retail, hospitality, healthcare, and law enforcement. It prints labels and receipts up to 3 inches wide, enhancing customer service with mobile point-of-sale capabilities. The OC3 features both **802.11b/g** and **Bluetooth®** connectivity, enabling seamless wireless operations. With intelligent power management, exceptional print clarity, and a two-year warranty, this portable printer is built to meet the demands of today’s fast-paced businesses.

Key Features:
  • Compact and Ergonomic Design: 35% smaller than competitors for maximum portability.
  • Wireless Connectivity: Supports both **802.11b/g** and **Bluetooth®** networking.
  • Exceptional Print Quality: 203 dpi resolution for sharp graphics and barcodes.
  • Long Battery Life: Prints up to 5,304 labels on a single charge.
  • Two-Year Warranty: Industry-leading warranty for peace of mind.


Specifications:
  • Dimensions: 6.54" x 4.906" x 2.75"
  • Weight: 21.41 oz (printer only)
  • Power Source: 7.2V Lithium-Ion (2200 mAh)
  • Print Speed: 2" per second
  • Operating Temperature: -4° F to 122° F
  • Memory: Flash: 4 MBytes, RAM: 2 MBytes
  • Battery Life: Approx. 10+ hours on a single charge
  • Network Compatibility: IEEE 802.11b/g for wireless printing
  • Label Width: 1" to 3"
  • Supported Fonts: Various including Bitstream® bitmap fonts

Main Features

  • Equipment Format: Mobile

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 2 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.84"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • UCC/EAN 128
  • UPC-A
  • UPC-E
Features
  • Magnetic Card Reader
  • Belt Clip
Print Technology Direct Thermal
Network & Communication
Wireless LAN Yes
Media Types & Handling
Media Type
  • Label
  • Tag
Media Sensor Transmissive Media Sensor
Media Thickness 6 mil
Maximum Roll Diameter 2.25"
Maximum Label Width 3"
Label Core Size 1"
Battery Information
Number of Batteries Supported 1
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Capacity 2200 mAh
Physical Characteristics
Form Factor Portable
Height 4.9"
Width 6.5"
Depth 2.8"
Miscellaneous
Package Contents
  • OC3 Thermal Label Printer
  • Battery
  • Roll of Media
  • Swivel Belt Clip
Platform Supported PC
Certifications & Standards
  • FCC B
  • CE
  • UL/cUL
  • RoHS
Warranty
Limited Warranty 2 Year
