Datalogic

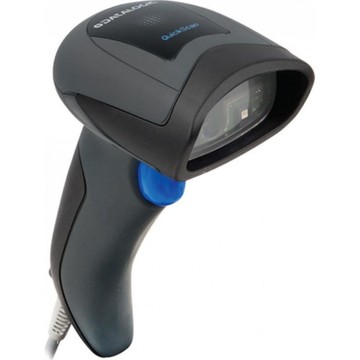

Datalogic QuickScan I QD2430 Barcode Scanner 2D, Handheld, Multi-interface, Green Spot, IP42

SKU:

QD2430-BKK1

Corded Barcode Scanner, Datalogic QuickScan QD2430, 2D Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable, Black
Description
ico-plus ico-minus
DataLogic's QuickScan QD2400 Barcode Scanner is designed for high-performance data capture in retail environments. Equipped with advanced **omnidirectional reading** capabilities, it efficiently scans both traditional printed linear barcodes and modern 2D codes from mobile devices. The innovative **LED-based aiming system** minimizes visual stress, making it perfect for prolonged use at point-of-sale locations. With its lightweight yet durable design, the QD2400 combines elegance and functionality, ensuring it meets the growing demands of today’s retailers without compromising reliability.
Key Features
  • Outstanding snappiness for quick scanning
  • Omnidirectional reading for virtually all codes
  • Reduced visual stress with LED-based aiming system
  • Patented 'Green Spot' technology for good-read feedback
  • Drop resistance to 1.5 m / 5.0 ft
  • IP42 rating for water and particulate sealing
  • 5-year factory warranty for peace of mind

Specifications
  • Decoding Capability:
    • 1D/Linear Codes
    • 2D Codes (QR Code, Data Matrix)
    • Postal Codes
    • Stacked Codes
  • Electrical:
    • Input Voltage: 4.5 - 14 VDC +/- 10%
    • Operating Current: 400 mA @ 5 VDC
  • Environmental:
    • Operating Temperature: 0 to 50 °C / 32 to 122 °F
    • Humidity: 0-95% Non-Condensing
    • Drop Resistance: 1.5 m / 5.0 ft
  • Physical Characteristics:
    • Dimensions: 16.3 x 9.1 x 4.1 cm
    • Weight: 145 g / 5.11 oz

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP42

  • Range: Short Range

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type Imager
Maximum Scan Resolution 4 mil
Depth of Field
  • 0.2" - 5.9"@5mil - Code 39
  • 0.2" - 13.8"@13mil - EAN/UPCA
  • 0.4" - 5.1"@6.6mil - PDF417
  • 0.4" - 5.1"@10mil - Data Matrix
Scan Pattern Omni-directional
Scanning Distance 13.78"
Cable Type Included USB
Reading Angle (Skew) 60°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 25 in/s
Maximum Ambient Light 86000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast 25%
Maximum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.6 mil
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Black
Height 6.4"
Width 1.6"
Depth 3.6"
Weight (Approximate) 5.11 oz
Miscellaneous
Additional Information

USB Cable separate
Ingress Protection (IP) Rating IP42
Application/Usage
  • Industrial
  • Retail
Country of Origin Vietnam
