Datalogic

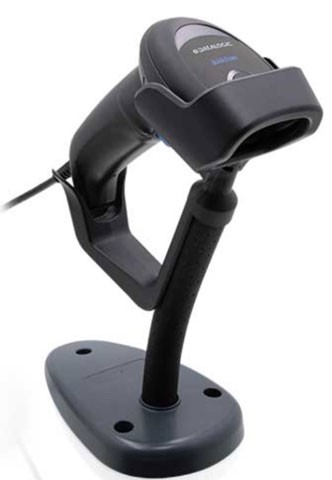

Datalogic QuickScan QD2500 Barcode Scanner 2D, Digimarc, Multi-Interface, IP52, Black, USB Kit

SKU:

QD2590-BKK1S

Shipped as a complete USB kit with a Smartstand included, the Datalogic QD2590-BKK1S is a corded handheld 2D area imager built around omnidirectional scanning with a motion tolerance of 30 in/s and a maximum scanning distance of 20.10 in. Its 1 MP sensor resolves Code 39 down to 5 mil and PDF417 down to 6.7 mil against a minimum print contrast of 15%, with reading angles of 65 degrees pitch, 65 degrees skew, and 360 degrees roll. Symbology support spans standard 1D codes including GS1 DataBar, 2D formats such as Aztec, Data Matrix, QR Code, and MaxiCode, postal and stacked codes, and Digimarc digital watermarks. USB, Serial, and Keyboard Wedge host interfaces accommodate a broad range of POS and data-capture hosts. The scanner operates under ambient light to 110000 lux, withstands repeated drops from 1.5 m onto concrete, and carries an IP52 ingress protection rating. Weighing 5.11 oz in black, it meets RoHS and China RoHS requirements and suits retail, healthcare, hospitality, ticketing, and light manufacturing deployments.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Precision 2D Imager is a professional handheld barcode scanner engineered for reliable data capture in retail, POS, office and light‑industrial environments. Designed to read 1D and 2D codes — including Digimarc and postal formats — the corded QD2500 family delivers consistent performance for checkout, inventory and asset‑tracking workflows. Its compact ergonomic body, multi‑interface connectivity and presentation‑friendly features reduce operator fatigue and simplify integration into existing systems. With practical kit options that include a 2 m USB cable and tilt or smart stand plus IP52 ingress protection and drop resistance, this imager offers a durable, easy‑to‑deploy solution for everyday scanning needs.

Key Features

  • Reliable 2D imaging: High‑quality 2D imager captures 1D, 2D, postal and Digimarc codes for broad application coverage.
  • Multi‑interface connectivity: USB, RS‑232 and Keyboard Wedge (KBW) support (and USB‑C on select kits) for flexible POS and PC integration.
  • Presentation and handheld use: Motionix motion sensing and presentation‑ready kits (stand included) enable smooth switching between use modes.
  • Clear user feedback: Visual Green Spot and adjustable audio feedback provide immediate confirmation of successful reads.
  • Durable everyday operation: IP52 protection and up to 1.5 m drop resistance help maintain uptime in busy workstations.

Specifications

  • Brand: Datalogic
  • Product Family: QD2500 / Precision 2D Imager
  • Form Factor: Handheld, corded
  • Scanner Type / Technology: 2D imager / 2D area imager
  • Supported Codes / Symbologies: 1D, 2D, Postal, Digimarc
  • Interfaces / Connectivity: USB, RS‑232, Keyboard Wedge (KBW) (USB‑C available on select variants)
  • Cable Type & Length: USB, straight; 2 m
  • Included Accessories: Tilt stand or Smartstand (varies by kit)
  • Protection Rating (IP): IP52
  • Drop Resistance: Up to 1.5 m (variant dependent)
  • Dimensions (W x H x D): 148 x 68 x 126 mm
  • Weight: 145 g
  • Scan Angle: ~65°
  • Motion / Movement Tolerance: 30 IPS
  • Image Sensor Resolution: 1 MP
  • Power Supply / Type: Wired (USB)

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP52

  • Range: Short Range

  • Connectivity: Corded

  • Connection: RS232, Serial, USB

  • Scanner Capability: 1D, 2D, Digimarc, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D :
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot code
Postal Codes :
  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes :
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Digital Watermarking :
  • Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Image Sensor Type Imager
Scan Pattern Omni-directional
Scanning Distance 20.10"
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 30 in/s
Image Formats
  • JPEG
  • BMP
  • TIFF
Maximum Ambient Light 110000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • Keyboard Wedge
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Weight (Approximate) 5.11 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Commercial Service
  • Hospitality
  • Ticketing
  • Government
  • Healthcare
  • Light/Clean Manufacturing
  • Industrial
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Documents
ico-plus ico-minus
Product document quickscan-2500.pdf QD2590-BKK1S  (PDF)
