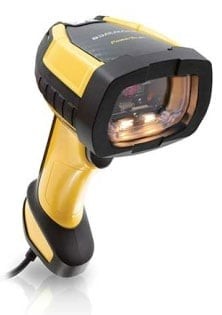

Datalogic PowerScan PM9600 Handheld Scanner Standard Range, 910MHz, 2D Imager, Display/16-key Keypad, Removable Battery, IP65/IP67

The Datalogic PM9600 ProTri-Range Scanner is a professional-grade handheld barcode scanner family engineered for industrial, warehouse, logistics and POS environments that demand reliable, long‑running data capture. Designed around advanced 2D imaging and specialized DPM decoding, the PM9600 series supports mixed symbologies (1D/2D, stacked and postal codes) and flexible read ranges via Auto Range and ProTri-range options. Ruggedized with IP65/IP67 sealing, high ESD tolerance and multi-meter drop resistance, the platform delivers cordless mobility, clear operator feedback and extended runtime through removable Lithium‑Ion batteries with inductive recharge—enabling sustained throughput and straightforward integration into diverse enterprise workflows.

Key Features

• Rugged reliability: Industrial-grade sealing (IP65/IP67) and multi-meter drop resistance protect continuous operation in harsh warehouse, manufacturing and logistics settings.
• Cordless mobility: Proprietary 433 MHz and 910 MHz radio options (including Datalogic STAR and proprietary 433 MHz systems) provide dependable wireless freedom across large work areas.
• Versatile barcode support: High-performance 2D imager with DPM decoding reads 1D, 2D, stacked and postal codes for broad application coverage.
• Long runtime and serviceability: Removable Lithium‑Ion batteries (around 3,300–3,350 mAh) with inductive/wireless charging and high scans‑per‑charge capacity keep devices productive through long shifts.
• Clear operator interface: Integrated 1.8" OLED display, keypad configurations (4‑key or 16‑key), trigger and multi-mode feedback (beeper, LED, vibration) improve usability and confirmation of reads.

Specifications

• Brand: Datalogic
• Product family / Model: PM9600 (ProTri‑Range / Auto Range / Standard Range variants)
• Typical part numbers / SKUs: PM9600-DDPX433RK20, PM9600-AR433RB, PM9600-DKAR433RB, PM9600-SR910RBK12, PM9600-HP910RBK20
• Scanning capability: 1D, 2D, Stacked Codes, Postal Codes, DPM
• Scan element / sensor: 2D imager (examples: Red LED imager; sensor resolutions up to 1280 x 800)
• Scan ranges: Auto Range / ProTri‑Range / Standard Range (example recommended distance 2.0 to 22.5 cm)
• Wireless frequency: 433 MHz, 910 MHz (model-dependent)
• Connectivity / Interfaces: RS‑232, USB, Ethernet, Ethernet/IP, PROFINET, serial and proprietary 433 MHz radio; Bluetooth 5 (selected SKUs)
• Display: 1.8 in OLED
• Keypad: 4 keys or 16 keys (variant dependent)
• Battery: Removable Lithium‑Ion (≈3300–3350 mAh); inductive / wireless charging supported
• Scans per charge: Up to 80,000 (model/usage dependent)
• Charge time: Full charge ~3.2 hours; charge to 95% ~2.5 hours (variant examples)
• Ingress protection: IP65, IP67
• Drop resistance: Typical 2.0 m to 2.5 m (model dependent, concrete)
• Dimensions (examples): 19.8 x 14.0 x 7.9 cm; 7.9 x 14.9 x 19.7 cm
• Weight (examples): ~462.5 g, ~480 g (variant dependent)
• Operating temperature range: -20 to 50 °C
• Storage temperature range: -40 to 70 °C
• Operating humidity: 0–95% non‑condensing (selected variants)
• Notifications / feedback: Beeper, LED indicator, vibration
• Included kit components (select SKUs): Scanner, cradle, cable, power supply and power cord (model-dependent kits)
