Datalogic

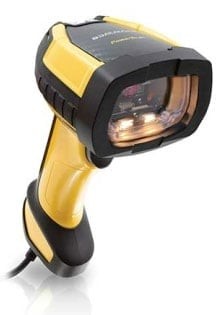

Datalogic PM9600 Barcode Scanner Kit 910MHz, Display/16-Key Keypad, Removable Battery, 2D Imager, IP65/IP67, RS-232 Kit

SKU:

PM9600-HP910RBK20

The Datalogic PM9600-HP910RBK20 ships as a complete kit -- scanner, Cradle BC9630-910, Cable CAB-548, Power Supply 8-0935, and Power Cord 6003-0941 -- built around a 910 MHz cordless connection and a 3350 mAh Li-Ion battery that recharges in 3.20 hours. Its 1280 x 800 imager reads all standard 1D codes, plus 2D symbologies including Aztec Code, Data Matrix, QR Code, MaxiCode, and PDF417, with a maximum scanning distance of 95.60 in, a 38-degree horizontal by 24-degree vertical field of view, and 360-degree roll tolerance. IP65 and IP67 ingress protection pairs with drop resistance rated at 50 drops from 2.5 m at 20 degrees C and 50 drops from 2.0 m at -20 degrees C, covering operating temperatures from -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C). The integrated display and 16-key keypad support on-device feedback, while beep, vibration, and notification LED confirm good reads; the unit weighs 14.99 oz. REACH, RoHS, and China RoHS compliance apply, and the kit is backed by a 3-year limited warranty suited to manufacturing, warehouse, logistics, and assembly-line deployments.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic PM9600 ProTri-Range Scanner is a professional-grade handheld barcode scanner family engineered for industrial, warehouse, logistics and POS environments that demand reliable, long‑running data capture. Designed around advanced 2D imaging and specialized DPM decoding, the PM9600 series supports mixed symbologies (1D/2D, stacked and postal codes) and flexible read ranges via Auto Range and ProTri-range options. Ruggedized with IP65/IP67 sealing, high ESD tolerance and multi-meter drop resistance, the platform delivers cordless mobility, clear operator feedback and extended runtime through removable Lithium‑Ion batteries with inductive recharge—enabling sustained throughput and straightforward integration into diverse enterprise workflows.

Key Features

  • Rugged reliability: Industrial-grade sealing (IP65/IP67) and multi-meter drop resistance protect continuous operation in harsh warehouse, manufacturing and logistics settings.
  • Cordless mobility: Proprietary 433 MHz and 910 MHz radio options (including Datalogic STAR and proprietary 433 MHz systems) provide dependable wireless freedom across large work areas.
  • Versatile barcode support: High-performance 2D imager with DPM decoding reads 1D, 2D, stacked and postal codes for broad application coverage.
  • Long runtime and serviceability: Removable Lithium‑Ion batteries (around 3,300–3,350 mAh) with inductive/wireless charging and high scans‑per‑charge capacity keep devices productive through long shifts.
  • Clear operator interface: Integrated 1.8" OLED display, keypad configurations (4‑key or 16‑key), trigger and multi-mode feedback (beeper, LED, vibration) improve usability and confirmation of reads.

Specifications

  • Brand: Datalogic
  • Product family / Model: PM9600 (ProTri‑Range / Auto Range / Standard Range variants)
  • Typical part numbers / SKUs: PM9600-DDPX433RK20, PM9600-AR433RB, PM9600-DKAR433RB, PM9600-SR910RBK12, PM9600-HP910RBK20
  • Scanning capability: 1D, 2D, Stacked Codes, Postal Codes, DPM
  • Scan element / sensor: 2D imager (examples: Red LED imager; sensor resolutions up to 1280 x 800)
  • Scan ranges: Auto Range / ProTri‑Range / Standard Range (example recommended distance 2.0 to 22.5 cm)
  • Wireless frequency: 433 MHz, 910 MHz (model-dependent)
  • Connectivity / Interfaces: RS‑232, USB, Ethernet, Ethernet/IP, PROFINET, serial and proprietary 433 MHz radio; Bluetooth 5 (selected SKUs)
  • Display: 1.8 in OLED
  • Keypad: 4 keys or 16 keys (variant dependent)
  • Battery: Removable Lithium‑Ion (≈3300–3350 mAh); inductive / wireless charging supported
  • Scans per charge: Up to 80,000 (model/usage dependent)
  • Charge time: Full charge ~3.2 hours; charge to 95% ~2.5 hours (variant examples)
  • Ingress protection: IP65, IP67
  • Drop resistance: Typical 2.0 m to 2.5 m (model dependent, concrete)
  • Dimensions (examples): 19.8 x 14.0 x 7.9 cm; 7.9 x 14.9 x 19.7 cm
  • Weight (examples): ~462.5 g, ~480 g (variant dependent)
  • Operating temperature range: -20 to 50 °C
  • Storage temperature range: -40 to 70 °C
  • Operating humidity: 0–95% non‑condensing (selected variants)
  • Notifications / feedback: Beeper, LED indicator, vibration
  • Included kit components (select SKUs): Scanner, cradle, cable, power supply and power cord (model-dependent kits)

Main Features

  • Rugged: Industrial

  • Battery Capacity: High Capacity

  • Case color: Black

  • IP Rating: IP67

  • Range: Long Range

  • Connectivity: Cordless

  • Connection: RS232, Serial

  • Scanner Capability: 1D, 2D

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanning Distance 95.60"
Features
  • Beep
  • Notification LED
  • Ergonomic Design
  • Vibration
  • 3GL
Cable Type Included Serial
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Radio Frequency Yes
Interfaces/Ports
Host Interface Serial
Power Description
Power Supply Included Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color
  • Yellow
  • Black
Durability
  • Water Resistant
  • Dust Resistant
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 14.99 oz
Miscellaneous
Package Contents
  • 1 x PowerScan 9600 PM9600 Barcode Scanner
  • 1 x Cradle BC9630-910
  • 1 x Cable CAB-548
  • 1 x Power Supply 8-0935
  • 1 x Power Cord 6003-0941
Ingress Protection (IP) Rating
  • IP65
  • IP67
Application/Usage
  • Manufacturing
  • Warehouse
  • Logistics
  • Picking
  • Inventory
  • Sorting
  • Packing
  • Assembly Line
  • Component Tracking
  • Industrial
Environmentally Friendly Yes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document pm9600.pdf PM9600-HP910RBK20  (PDF)
