Datalogic

Datalogic PowerScan PM9501, 2D, SR, multi-IF, disp., RB

SKU:

PM9501-D433RB

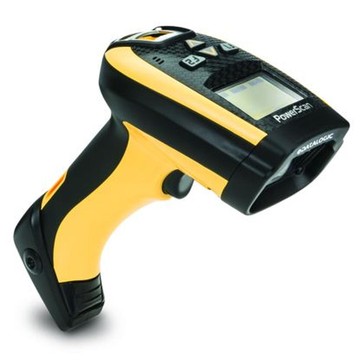

Wireless connectivity via the Datalogic STAR Cordless System defines the PM9501-D433RB, a handheld 2D area imager in the PowerScan 9501 series configured with a display and 4 configurable keys. Its imager reads both 1D and 2D barcodes omnidirectionally, covering orientation-independent scanning from contact range to over 1.0 m / 3.3 ft depending on barcode resolution. The multi-interface design supports serial, USB, and keyboard wedge host connections, providing broad compatibility across existing infrastructure. Finished in yellow and black, the unit weighs 15.52 oz and uses soft-pulsed white illumination to reduce operator eye strain during scan-intensive shifts. Serial, USB, and keyboard wedge interfaces accommodate a range of industrial and logistics host environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic PowerScan PM9500 is a ruggedized cordless handheld 2D area imager designed for IT and operations teams deploying scanners in demanding industrial environments such as warehousing, manufacturing, logistics, and distribution. Powered by Datalogic's STAR Cordless System operating at 433 MHz or 910 MHz, it delivers wireless freedom with seamless roaming and point-to-point or multi-point configurations supporting up to 32 readers per radio receiver. Its omni-directional imaging engine reads all standard 1D and 2D codes, including direct part marks, from contact up to over 1.0 m depending on barcode resolution. An IP65-rated housing and drop resistance of 2.0 m / 6.6 ft onto concrete ensure reliable operation in harsh settings, while a removable Lithium-Ion battery rated for 30,000+ scans per charge supports more than one full shift of intensive scanning. Ethernet, RS-232, and USB interfaces simplify integration into existing host systems.

Main Features

  • Range: Standard Range

  • Scanner Capability: 2D
