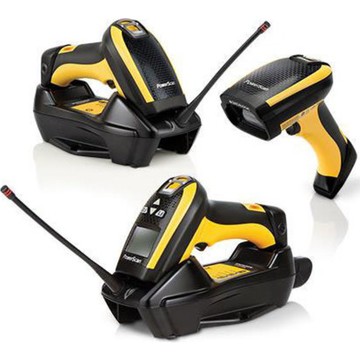

Datalogic PM9300-DK Barcode Scanner 910MHz, Display/16-Key, Removable Battery, Standard Range, Laser Scanner

The Datalogic PM9300 Laser Barcode Scanner is a professional-grade, cordless handheld scanner family designed for demanding B2B environments such as warehousing, logistics, manufacturing and retail. Built around Datalogic’s STAR Cordless System and proven 1D laser/linear imaging technology, the PM9300 range delivers long read distances, rugged construction and flexible integration options to reduce downtime and accelerate workflows. Variants offer removable lithium‑ion batteries for extended shifts, on-device displays and keypads for local operation, and multi-interface connectivity (USB, RS‑232, RS‑485, keyboard wedge and RF) to fit existing host systems, making the series a practical choice for high-throughput, mobile data capture applications.

Key Features

• Cordless freedom: Datalogic STAR Cordless System and 433/910 MHz radio options provide reliable wireless operation and seamless roaming for mobile workflows.
• Extended read range: Auto‑ranging laser/optics deliver reading distances up to 11.5 m, enabling near‑to‑far scanning across aisles and racking.
• Removable long‑life battery: Lithium‑ion removable battery (example: 3350 mAh) supports long shifts and hot‑swap replacement to minimize downtime.
• Multi‑interface connectivity: Keyboard wedge, RS‑232, RS‑485, USB, Ethernet and RF wireless interfaces simplify integration into diverse host systems.
• On‑device usability: Variants include displays and keypads (4‑key or 16‑key options) for operator control, status feedback and standalone tasks.
• Rugged design: Industrial construction with drop resistance and IP65 sealing on selected models ensures durability in harsh operational environments.

Specifications

• Brand: Datalogic
• Product family: PM9300 (cordless laser/1D)
• Scanner Type: Laser / 1D Linear Imager
• Cordless System: Datalogic STAR Cordless System
• Radio Frequency / Frequencies: 910 MHz; 433 MHz; 433, 910 MHz
• Maximum Reading Distance: 11.5 m
• Scan Speed / Maximum Scans Per Second: 35 scans/s
• Battery Capacity: 3350 mAh
• Battery Chemistry: Lithium‑ion
• Removable Battery: true
• Battery Charge Time: 4.5 hrs
• Connectivity: Keyboard wedge, RS‑232, RS‑485, USB, Ethernet, RF Wireless (varies by model)
• Keypad / Display: 4‑key display; 16 keys (model dependent)
• Weight (examples by configuration): 435 g; 1 kg; 4.95 lbs; 7.1 lbs
• Drop Resistance: 2.0 m
• IP Rating (selected models): IP65
• Kit Contents (selected configurations): Scanner, communication/charging base, power supply, serial/RS‑232 cable, removable battery, cradle
