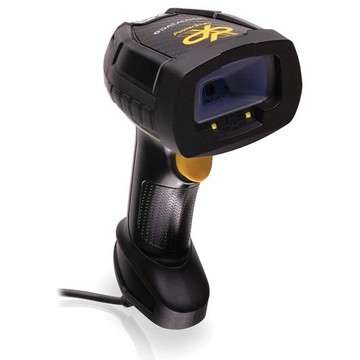

Datalogic PowerScan PD9630 handheld scanner 1D, 2D, DPM, RS232, USB, Ethernet, IP65, IP67, 2.5m

The Datalogic PD9630 is a professional-grade handheld 1D/2D imager designed for demanding warehouse, logistics, manufacturing and retail workflows that require fast, reliable barcode capture and long-term durability. Built on the PD9600 series, this rugged scanner combines robust IP65/IP67 sealing with ergonomic trigger operation, vibration feedback and multiple wired interfaces (RS-232, USB) to simplify integration into existing systems. Supporting Digimarc and a wide range of linear, stacked and matrix codes, plus color imaging on select models, the PD9630 family delivers consistent first-pass reads from contact to extended ranges and reduces downtime in harsh environments through proven protection features and industrial-grade components.

Key Features

• Rugged protection: IP65 and IP67 sealing with dust, water, drop and ESD resistance for reliable operation in harsh environments.
• Broad code support: Native decoding of 1D, 2D, stacked and postal codes, including Digimarc for modern retail applications.
• Flexible wired integration: Multi-interface support with RS-232 and USB connectivity (some kits include cables) for straightforward deployment.
• Operator-friendly feedback: Trigger, vibration, LED indicators and audible beeper (Green Spot/3GL on some variants) for immediate good-read confirmation.
• Versatile imaging: Select models offer color imaging and Auto Range/standard-range capture with depth of field from contact to over 2.0 m.

Specifications

• Brand: Datalogic
• Product Family: PD9630 (PD9600 series)
• Scanner Type: 1D/2D imager (area imager on 2D models)
• Model Examples / SKUs: PD9630-HPK2, PD9630-SRK2, PD9630-ARK1, PD9630-DC, PD9630-DCK1
• Standard Interfaces: RS-232, USB
• Connectivity Technology: Wired (corded)
• Ingress Protection Rating: IP65, IP67
• Supported 1D Codes: China Post, Code 128, EAN 128, EAN-2, EAN-5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
• Supported 2D Codes: Aztec, Data Matrix, MaxiCode, Micro QR, MicroPDF417, PDF417, QR Code
• Supported Symbologies: Digimarc (selected models)
• Imaging / Optical Sensor Resolution: Color imaging available on select variants; 1280 x 800 pixels
• Illumination Wavelength: 630 nm (white light aiming on select models)
• Depth of Field (Contact to): over 2.0 m
• Working Distance: 20 cm (typical reference)
• Dimensions (H x W x D): 198 x 79 x 140 mm
• Weight: ~318 g (variant dependent; some list 0.434 kg or 1 lb)
• Input Voltage: 5 - 30 V
• Power Consumption: 280 mA
• Operating Temperature: -20 to 50 °C
• Storage Temperature: -40 to 70 °C
• Operating Relative Humidity: 0 - 95%
• Product Color: Black, Yellow
• Included Items: RS-232 or USB cable included depending on kit
• Additional Features: Trigger, vibration feedback, Motionix motion sensing, Green Spot/3GL good-read options, long trigger life on select variants
