Datalogic

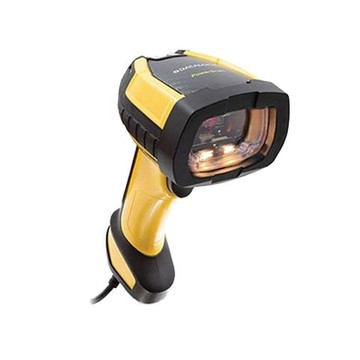

Datalogic PowerScan ColorPro 9630 Handheld scanner 2D, Color imaging, Digimarc, RS-232/USB, IP65/IP67

SKU:

PD9630-DCK1

The Datalogic PD9630-DCK1 is configured as a Document Capture kit, pairing a wired RS-232 and USB area imager with IP67 and IP65 sealing and a drop specification of 50 drops from 2.5 m at 20 °C / 68 °F and 50 drops from 2.0 m at -20 °C / -4 °F. The omni-directional LED imager reads 1D and 2D symbologies -- including Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, China Han Xin Code, and Dot Code -- plus a full range of postal codes and Digimarc Barcodes, with a maximum scanning distance of 46.90 in, a horizontal field of view of 38°, a vertical field of view of 24°, and reading angles of 52° skew, 52° pitch, and 360° roll. Minimum print contrast is 15%, maximum element resolution for DataMatrix is 10 mil, and the scanner tolerates ambient light up to 100000 lux. The black and yellow handheld chassis weighs 11.22 oz and measures 7.5 in tall, 3.1 in wide, and 5.5 in long, with a USB cable included. The kit carries a 36-month warranty and suits manufacturing, warehouse, logistics, picking, sorting, and asset-tracking workflows.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic PD9630 is a professional-grade handheld 1D/2D imager designed for demanding warehouse, logistics, manufacturing and retail workflows that require fast, reliable barcode capture and long-term durability. Built on the PD9600 series, this rugged scanner combines robust IP65/IP67 sealing with ergonomic trigger operation, vibration feedback and multiple wired interfaces (RS-232, USB) to simplify integration into existing systems. Supporting Digimarc and a wide range of linear, stacked and matrix codes, plus color imaging on select models, the PD9630 family delivers consistent first-pass reads from contact to extended ranges and reduces downtime in harsh environments through proven protection features and industrial-grade components.

Key Features

  • Rugged protection: IP65 and IP67 sealing with dust, water, drop and ESD resistance for reliable operation in harsh environments.
  • Broad code support: Native decoding of 1D, 2D, stacked and postal codes, including Digimarc for modern retail applications.
  • Flexible wired integration: Multi-interface support with RS-232 and USB connectivity (some kits include cables) for straightforward deployment.
  • Operator-friendly feedback: Trigger, vibration, LED indicators and audible beeper (Green Spot/3GL on some variants) for immediate good-read confirmation.
  • Versatile imaging: Select models offer color imaging and Auto Range/standard-range capture with depth of field from contact to over 2.0 m.

Specifications

  • Brand: Datalogic
  • Product Family: PD9630 (PD9600 series)
  • Scanner Type: 1D/2D imager (area imager on 2D models)
  • Model Examples / SKUs: PD9630-HPK2, PD9630-SRK2, PD9630-ARK1, PD9630-DC, PD9630-DCK1
  • Standard Interfaces: RS-232, USB
  • Connectivity Technology: Wired (corded)
  • Ingress Protection Rating: IP65, IP67
  • Supported 1D Codes: China Post, Code 128, EAN 128, EAN-2, EAN-5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
  • Supported 2D Codes: Aztec, Data Matrix, MaxiCode, Micro QR, MicroPDF417, PDF417, QR Code
  • Supported Symbologies: Digimarc (selected models)
  • Imaging / Optical Sensor Resolution: Color imaging available on select variants; 1280 x 800 pixels
  • Illumination Wavelength: 630 nm (white light aiming on select models)
  • Depth of Field (Contact to): over 2.0 m
  • Working Distance: 20 cm (typical reference)
  • Dimensions (H x W x D): 198 x 79 x 140 mm
  • Weight: ~318 g (variant dependent; some list 0.434 kg or 1 lb)
  • Input Voltage: 5 - 30 V
  • Power Consumption: 280 mA
  • Operating Temperature: -20 to 50 °C
  • Storage Temperature: -40 to 70 °C
  • Operating Relative Humidity: 0 - 95%
  • Product Color: Black, Yellow
  • Included Items: RS-232 or USB cable included depending on kit
  • Additional Features: Trigger, vibration feedback, Motionix motion sensing, Green Spot/3GL good-read options, long trigger life on select variants

Main Features

  • Rugged: Industrial

  • Case color: Black

  • IP Rating: IP67

  • Connectivity: Corded

  • Connection: RS232, USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot code
Postal Codes:
  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Digital Watermarking:
  • Digimarc Barcodes (PD9630-HP and PD9630-DC)
Light Source LED
Image Sensor Type Imager
Scan Pattern Omni-directional
Scanning Distance 46.90"
Cable Type Included USB
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
Minimum Print Contrast 15%
Maximum Element Resolution (DataMatrix) 10 mil
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color
  • Black
  • Yellow
Height 7.5"
Width 3.1"
Length 5.5"
Weight (Approximate) 11.22 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP67
  • IP65
Application/Usage
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Warehouse
  • Logistics
  • Picking
  • Sorting
  • Industrial
Documents
ico-plus ico-minus
Product document pd9630-2022.pdf PD9630-DCK1  (PDF)
