Datalogic

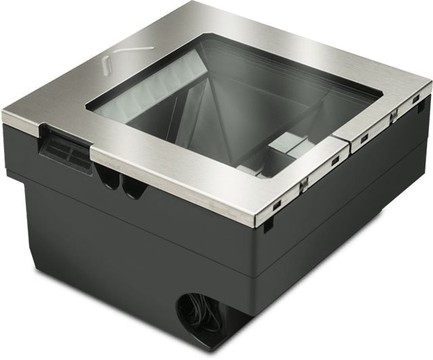

Datalogic Magellan 3510HSi Barcode Scanner 1D/2D Scanning, Sapphire Platter, Standard Mount, HS1250 Fill Kit, No Power Supply, No Cable

SKU:

M3511-010220

Powered by a single 5V USB connection at a maximum of 3.30 W, the Datalogic M3511-010220 is an in-counter barcode scanner with a 1280 x 800 image sensor that reads both 1D and 2D codes -- including Aztec Code, Data Matrix (ECC200 only), QR Code, PDF417, MicroPDF417 and the full GS1 DataBar family -- across skew angles to 75 degrees, pitch to 65 degrees, and a full 360-degree roll tolerance. An LED illuminator operates in ambient light up to 86100 lux with a minimum print contrast of 25%, and the unit carries IP52 ingress protection against dust and water. The black-and-silver chassis weighs 2.16 lb and ships with a standard mount and HS1250 fill kit. Checkpoint and Sensormatic EAS, diagnostic reporting and a notification LED are included; image output is supported in JPEG and BMP formats. Operating range is 50 degrees F (10 degrees C) to 104 degrees F (40 degrees C), compliance covers RoHS and China RoHS, and the unit is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Magellan 3500HSi is a professional fixed‑mount, in‑counter barcode scanner family engineered for retail point‑of‑sale, pharmacy and DIY environments that require reliable, high‑throughput capture of both 1D and 2D codes. Designed around a durable sapphire glass window and solid‑state electronics, the line delivers quiet, hands‑free omnidirectional imaging that reduces rescans and speeds transactions. Multiple interface and configuration options—including USB, RS‑232 and multi‑interface variants—plus extended cable choices, microSD support and a compact counter‑mount form factor make this scanner series easy to integrate into existing POS systems while minimizing downtime and maintenance. Ideal for busy checkout lanes and embedded OEM applications.

Key Features

  • 1D/2D Imaging: Versatile imager technology captures linear and matrix barcodes, supporting codes on paper and mobile screens for consistent checkout reads.
  • Durable Sapphire Window: Sapphire glass provides a long‑life scanning surface resistant to wear, suitable for continuous in‑counter use.
  • Multi‑Interface Flexibility: Available with USB, RS‑232 or multi‑interface (including IBM) connections to simplify integration across POS platforms and OEM systems.
  • Retail‑Optimized Design: Fixed‑position / in‑counter form factor and standard counter mount save space and support efficient sweep scanning in high‑traffic lanes.
  • Expandable & Serviceable: MicroSD slot, image capture capability and software‑driven configuration options enable added functionality and straightforward field updates.

Specifications

  • Brand: Datalogic
  • Product Name: Magellan 3500HSi
  • Product Series / Model: 3500HSi / 3550HSi (variant configurations)
  • Form Factor: Fixed mount / In‑counter (built‑in, OEM options available)
  • Scan Capability / Types: 1D, 2D (imager)
  • Interfaces / Connectivity: USB, RS‑232, IBM (multi‑interface depending on configuration)
  • Mount Type: Standard counter mount / mounting frame (varies by model)
  • Window Material: Sapphire glass
  • Cable Length: 4.5–4.6 m (varies by configuration); 15 ft equivalent noted on some SKUs
  • MicroSD Card Slot: Yes (selected variants)
  • Included Items: Cable included; some configurations include power supply
  • Color: Black / Silver
  • Intended Use: Retail point of sale, pharmacy, DIY and related commercial checkout environments
  • Ingress Protection Rating: IP52 (selected fixed‑position variants)
  • Supported Symbologies: Includes common retail symbologies and GS1 DataBar variants (supported across variants)

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:

Aztec Code; Data Matrix (ECC200 only); QR Code

Stacked Codes:

  • GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417

Digital Watermarks:

  • Optional support for Digimarc® Barcodes/GS1 DW Code
Light Source LED
Image Sensor Type Imager
Features
  • Checkpoint EAS
  • Sensormatic EAS
  • Diagnostic Reporting
  • Notification LED
  • Ergonomic Design
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • BMP
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Image Sensor Resolution 1280 x 800
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Power Description
Maximum Operating Power Consumption 3.30 W
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor In-counter
Color Family Dual Color
Product Color
  • Black
  • Silver
Width 6"
Depth 3.4"
Length 6"
Weight (Approximate) 2.16 lb
Miscellaneous
Package Contents
  • Magellan 3510HSi Barcode Scanner
  • Standard Mount with HS1250 Fill Kit
Ingress Protection (IP) Rating IP52
Application/Usage
  • Industrial
  • Retail
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document magellan-3510hsi.pdf M3511-010220  (PDF)
