Datalogic

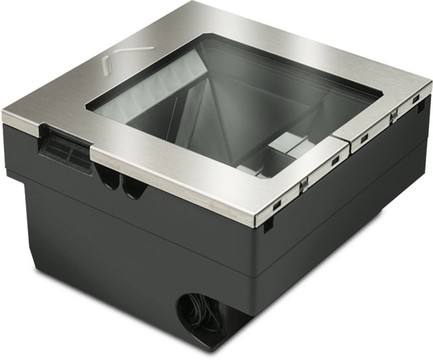

Datalogic Magellan 3510HSi Built-in Barcode Reader 1D/2D, Sapphire Glass, USB, IP52, MicroSD, Black

SKU:

M3511-010200

The Datalogic M3511-010200 is an in-counter 1D/2D imager built around a sapphire glass front window, giving the scanning surface resistance suited to high-traffic retail checkout lanes. Its 1280 x 800 image sensor reads at up to 86100 lux of ambient light with a minimum print contrast of 25%, covering all standard 1D codes including GS1 DataBar, stacked codes such as PDF417 and MicroPDF417, and 2D symbologies including Aztec Code, Data Matrix (ECC200 only) and QR Code, as well as Digimarc digital watermark reading. Reading angles reach 75 degrees skew, 65 degrees pitch and 360 degrees roll, with a maximum reading range of 10.2 cm. Image capture outputs BMP and JPEG files, and a microSD slot supports expanded storage. USB and RS-232 host interfaces are provided, with maximum operating power consumption of 2.25 W. The unit measures 6 in long by 6 in wide by 3.4 in deep and weighs 2.16 lb. IP52 ingress protection and an operating temperature range of 50°F (10°C) to 104°F (40°C) suit retail and light industrial installations. RoHS and China RoHS compliance are confirmed, and the M3511-010200 carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Magellan 3500HSi is a professional fixed‑mount, in‑counter barcode scanner family engineered for retail point‑of‑sale, pharmacy and DIY environments that require reliable, high‑throughput capture of both 1D and 2D codes. Designed around a durable sapphire glass window and solid‑state electronics, the line delivers quiet, hands‑free omnidirectional imaging that reduces rescans and speeds transactions. Multiple interface and configuration options—including USB, RS‑232 and multi‑interface variants—plus extended cable choices, microSD support and a compact counter‑mount form factor make this scanner series easy to integrate into existing POS systems while minimizing downtime and maintenance. Ideal for busy checkout lanes and embedded OEM applications.

Key Features

  • 1D/2D Imaging: Versatile imager technology captures linear and matrix barcodes, supporting codes on paper and mobile screens for consistent checkout reads.
  • Durable Sapphire Window: Sapphire glass provides a long‑life scanning surface resistant to wear, suitable for continuous in‑counter use.
  • Multi‑Interface Flexibility: Available with USB, RS‑232 or multi‑interface (including IBM) connections to simplify integration across POS platforms and OEM systems.
  • Retail‑Optimized Design: Fixed‑position / in‑counter form factor and standard counter mount save space and support efficient sweep scanning in high‑traffic lanes.
  • Expandable & Serviceable: MicroSD slot, image capture capability and software‑driven configuration options enable added functionality and straightforward field updates.

Specifications

  • Brand: Datalogic
  • Product Name: Magellan 3500HSi
  • Product Series / Model: 3500HSi / 3550HSi (variant configurations)
  • Form Factor: Fixed mount / In‑counter (built‑in, OEM options available)
  • Scan Capability / Types: 1D, 2D (imager)
  • Interfaces / Connectivity: USB, RS‑232, IBM (multi‑interface depending on configuration)
  • Mount Type: Standard counter mount / mounting frame (varies by model)
  • Window Material: Sapphire glass
  • Cable Length: 4.5–4.6 m (varies by configuration); 15 ft equivalent noted on some SKUs
  • MicroSD Card Slot: Yes (selected variants)
  • Included Items: Cable included; some configurations include power supply
  • Color: Black / Silver
  • Intended Use: Retail point of sale, pharmacy, DIY and related commercial checkout environments
  • Ingress Protection Rating: IP52 (selected fixed‑position variants)
  • Supported Symbologies: Includes common retail symbologies and GS1 DataBar variants (supported across variants)

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Connection: RS232, USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D / Linear Codes

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes

  • Aztec Code; Data Matrix (ECC200 only); QR Code

Stacked Codes

  • GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417
Light Source LED
Image Sensor Type Imager
Features
  • Sensormatic EAS
  • Beep
  • Checkpoint EAS
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Image Sensor Resolution 1280 x 800
Illumination Type LED
Interfaces/Ports
Host Interface
  • USB
  • Serial
Power Description
Maximum Operating Power Consumption 2.25 W
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor In-counter
Color Family Dual Color
Product Color
  • Black
  • Silver
Width 6"
Depth 3.4"
Length 6"
Weight (Approximate) 2.16 lb
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Industrial
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document magellan-3510hsi.pdf M3511-010200  (PDF)
