Datalogic

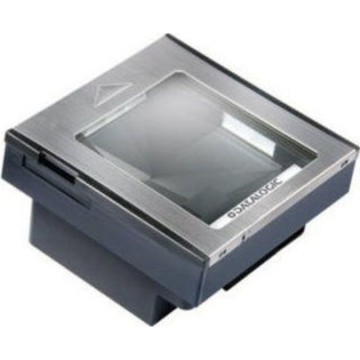

MGL3300,DLS w/Std EAS antenna,LLT top,Factory Default config,2D Scanning S/W,Std counter mount,No,No,US/Canada Desk top brick & cord

SKU:

M3301-010210-01104

Configured with 2D scanning software, a standard EAS antenna, and a standard counter mount, the Datalogic M3301-010210-01104 is an in-counter barcode scanner built for high-volume point-of-sale installations. Its LED-based imaging engine resolves codes down to 5 mil, autodiscriminating all standard 1D symbologies including GS1 DataBar linear codes, plus 2D formats -- Aztec Code, Data Matrix (ECC200), MaxiCode and QR Code -- and stacked codes including PDF417, MicroPDF417, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked and GS1 DataBar Composites. A linear scan pattern supports both sweep and presentation scanning techniques. The unit connects via serial host interface, with the USB cable sold separately, and ships in a solid-state design that eliminates laser modules and spinning motors. Physical dimensions are 6 in long by 6 in wide by 3.4 in deep, with an approximate weight of 1.74 lb. RoHS and China RoHS compliant, the M3301-010210-01104 is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 3300HSi is a high-performance in-counter barcode scanner designed for high-volume point-of-sale environments in retail. Bringing imaging technology to the checkout counter, it delivers the speed and wide field-of-view associated with omnidirectional laser scanners while adding the advantages of a solid-state imager — with no laser modules or spinning motors to wear out. It reads all standard 1D linear codes, GS1 DataBar, and a full range of 2D and stacked symbologies, including Data Matrix, QR Code, Aztec Code, and PDF417, at up to 5 mil resolution. Both sweep and presentation scanning techniques are supported. A built-in Micro-SD card slot simplifies software management and firmware upgrades, while multiple host interfaces — including USB, RS-232, Keyboard Wedge, and IBM 46xx — ensure broad POS system compatibility. A 3-year factory warranty protects the investment.

Main Features

  • Barcode Type: 2D

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-magellan3300-datalogic-presentation-readers-datasheet.pdf M3301-010210-01104  (PDF) Product document mod-magellan3300-datalogic-presentation-readers-user-manual.pdf M3301-010210-01104  (PDF) Product document datalogic-magellan-3300hsi.pdf M3301-010210-01104  (PDF)
FAQs
ico-plus ico-minus
What barcode symbologies can the Datalogic Magellan 3300HSi read?
The Magellan 3300HSi autodiscriminates all standard 1D codes including GS1 DataBar linear codes, 2D codes such as Aztec Code, Data Matrix (ECC200 Only), MaxiCode, and QR Code, and stacked codes including PDF417, MicroPDF417, and the full GS1 DataBar stacked family.
Which host interfaces does the Datalogic Magellan 3300HSi support?
The scanner supports IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, USB, and USB COM, plus a powered RS-232 auxiliary port.
What are the physical dimensions and weight of the Datalogic Magellan 3300HSi?
The unit measures 15.2 cm long by 15.2 cm wide by 8.7 cm deep below the counter and weighs 0.79 kg (1.75 lb).
What is the operating temperature range and humidity tolerance of the Datalogic Magellan 3300HSi?
It operates from 0 to 40 °C (32 to 104 °F) at 5–95% non-condensing humidity, with a storage and transport range of -40 to 70 °C (-40 to 158 °F).
How is software managed on the Datalogic Magellan 3300HSi, and what free utilities are available?
The scanner includes a Micro-SD card slot that supports firmware upgrades and configuration file updates; Magellan On-Screen Programming (OSP) software, OPOS Utilities, and JavaPOS Utilities are all available for download at no charge.
What warranty does the Datalogic Magellan 3300HSi carry?
It is covered by a 3-Year Factory Warranty.
