Datalogic

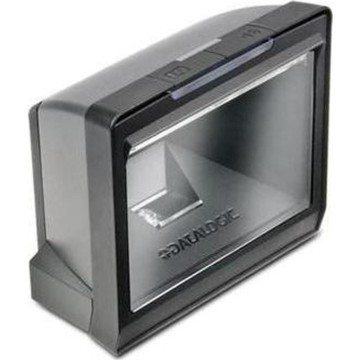

DATALOGIC ADC, SCANNER, MGL3200, DLS W/STD EAS ANTENNA, FACTORY DEFAULT CONFIG, 1D SCANNING S/W, STD BACK COVER MOUNT, US/CANADA DESKTOP BRICK

SKU:

M3200-010100-01604

Configured with integrated Checkpoint EAS and Sensormatic EAS antennas alongside Productivity Index Reporting, the Datalogic M3200-010100-01604 is a cabled, desktop presentation scanner built for high-volume point-of-sale environments. It resolves barcodes to 5 mil and uses an omni-directional imager with laser illumination, reaching a scanning distance of 5.50 inches. Depth of field scales from 1.3 cm to 6.4 cm at 5 mil, widening to 0 cm to 22.9 cm at 20 mil, supporting both sweep and presentation techniques. Symbology coverage spans all standard 1D linear codes including GS1 DataBar, plus stacked codes such as PDF417, MicroPDF417, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, and GS1 DataBar Composites. The unit connects via USB or Keyboard Wedge and ships with a 15 ft. USB Type A straight cable and a US/Canada desktop power brick in a 1.30 lb chassis measuring 6 in wide, 5.6 in tall, and 3.2 in deep. RoHS and China RoHS compliance is standard, and the scanner carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 3200VSi is an on-counter presentation barcode scanner designed for high-volume point-of-sale environments in retail. Built around Datalogic's imaging technology, it reads all standard 1D and linear codes including GS1 DataBar, 2D codes such as Aztec Code, Data Matrix, MaxiCode, and QR Code, as well as stacked codes including PDF417 and MicroPDF417, making it well suited for modern retail checkout and age-verification workflows. Its solid-state design eliminates laser modules and spinning motors for dependable, low-maintenance operation, while Illumix intelligent illumination technology enables reliable reading of barcodes from mobile phones and digital screens. Serial and USB interfaces provide flexible integration with existing POS systems, and a Micro-SD card slot simplifies software management and firmware upgrades. A 3-year factory warranty rounds out a strong long-term value proposition.

Main Features

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-magellan-3200vsi-datalogic-presentation-readers-datasheet.pdf M3200-010100-01604  (PDF) Product document mod-magellan-3200vsi-datalogic-presentation-readers-user-manual.pdf M3200-010100-01604  (PDF)
FAQs
ico-plus ico-minus
What barcode symbologies can the Datalogic Magellan 3200VSi read?
The Magellan 3200VSi autodiscriminates all standard 1D and linear codes including GS1 DataBar, and reads 2D codes such as Aztec Code, Data Matrix (ECC200 only), MaxiCode, and QR Code, as well as stacked codes including PDF417, MicroPDF417, and the full GS1 DataBar stacked family.
Which host interfaces does the Datalogic Magellan 3200VSi support?
The scanner supports IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, and USB interfaces, and includes a powered RS-232 auxiliary port.
Can the Datalogic Magellan 3200VSi read barcodes displayed on mobile phones or tablet screens?
Yes, the scanner's Illumix intelligent illumination technology optimizes light levels specifically to capture barcodes from mobile phones, PDAs, and computer display screens.
What are the physical dimensions and weight of the Datalogic Magellan 3200VSi?
The unit measures 14.2 x 15.2 x 8.2 cm and weighs 0.6 kg.
What warranty does the Datalogic Magellan 3200VSi carry, and are extended service options available?
The scanner includes a 3-Year Factory Warranty, and Datalogic's EASEOFCARE service plans are available to provide extended parts and labor coverage beyond the standard warranty period.
Does the Datalogic Magellan 3200VSi offer any tools to monitor checkout performance or manage software updates?
Yes, the scanner features Productivity Index Reporting (PIR) and Diagnostics Reporting to help manage throughput and maintenance, and it includes a Micro-SD card slot along with remote host download capability for flexible software management and firmware updates.
