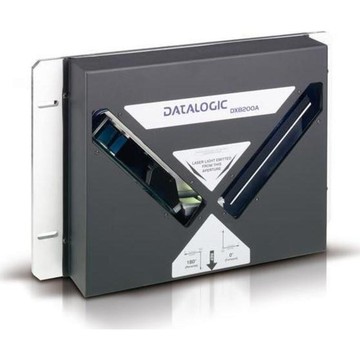

DX8210-2100 Standard Resolutio

The Datalogic DX8210 Fixed Barcode Scanner is a cutting-edge solution designed for maximum efficiency in the Transport and Logistics market. With its unique all-in-one architecture, this high-performance laser bar code reader delivers exceptional reading capabilities, allowing for seamless omnidirectional scanning on conveyor systems. Operating at a stunning scan rate of 2000 scans per second, it excels in high-speed environments and adapts easily to varying code quality, ensuring timely operational performance.

• All-in-one architecture for easy installation and operation
• Omnidirectional reading area of 900x900 mm (36x36 in)
• High scan rate of 2000 scans/sec for mass production
• Stable and constant performance under various conditions with DST technology
• Advanced ASTRA G3 technology for a wide depth of field
• Real-time synchronization supported by Ethernet Bus Connections (EBC)
• Fully redundant configuration to avoid system failures
• Accessible system diagnostics via e-GENIUS web browser tool

• Reading Distance (Min/Max): 600-1850 mm (23-72 in)
• Max Resolution: Min: 0.25mm (10 mils)/Max: 1.0mm (40 mils)
• Scan Rate: Up to 1000 scans/s (Max: 2000 scans/s)
• Scan Pattern Type: X-Pattern
• Aperture Angle: 60 degrees
• Multilabel Reading: Up to 10 different symbologies
• Optic Architecture/Technology: ASTRA G3
• Readable Codes: 22 symbologies including Code 39, EAN/UPC, ISBN 128
• Dimensions: 381 x 328 x 92.5 mm (15 x 13 x 3.6 in)
• Weight: 7.7 kg (17 lb)
• Temperature Range: 0° - 50° C
• Power Supply: 20 to 30 VDC; 20 W
• IP Rating: IP65
• Internal Communication System: EBC Technology
• Device Programming: Multilanguage, browser-based interface
