Datalogic

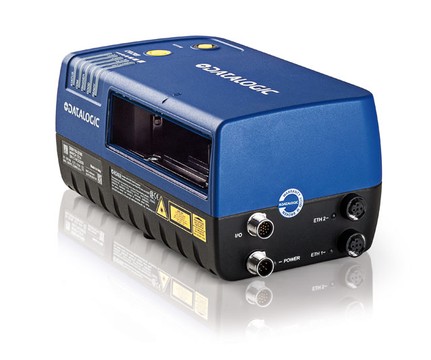

DS8100A-2010 MED RES,LIN DOUBLE LAS

SKU:

932500002

High Performance Reader, Datalogic DS8110-2200, High Resolution
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic DS8100A is a fixed-mount industrial laser barcode scanner engineered for the most demanding Transportation and Logistics environments, including parcel sorting, airport baggage handling, automated warehousing, and postal and courier applications. Built on an aluminum alloy housing rated IP65, it delivers a scan rate of 1000 scans/s across a reading distance of 500 to 1900 mm, reading up to 10 different symbologies simultaneously. ASTRA G3 optic technology provides outstanding depth of field and field of view without mechanical autofocus, while DST (Digital Signal Technology) ensures reliable reads even on low-quality or damaged codes. Ethernet and serial connectivity support seamless integration into multi-scanner tunnel systems, and the browser-based e-GENIUS configuration tool eliminates the need for dedicated software, simplifying setup and ongoing diagnostics.

Main Features

  • Connection: Serial, Ethernet

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability 1D
Barcode Symbology Supported
  • 22 symbologies including 2/5 family
  • Code39
  • Code93
  • Code128
  • EAN/UPC
  • EAN128
  • ISBN128
Light Source Laser
Scan Rate 1000 scan/s
Scanning Distance 74.80"
Interfaces/Ports
Host Interface
  • Serial
  • Ethernet
Physical Characteristics
Form Factor Fixed Mount
Weight (Approximate) 4.41 lb
Documents
ico-plus ico-minus
Product document ds8110.pdf 932500002 Product document ds8110.pdf MOD-DS8100A
FAQs
ico-plus ico-minus
What industries and applications is the Datalogic DS8100A Industrial Laser Scanner designed for?
The DS8100A is built for Transportation and Logistics applications, specifically parcel sorting and tracking, airport baggage sorting, automated warehousing, cargo handling, and loading and unloading systems.
What connectivity interfaces does the Datalogic DS8100A support?
The DS8100A includes built-in Ethernet TCP/IP connectivity via an RJ45 industrial modular connector, plus a main serial interface supporting RS232 and RS485 (full-duplex and half-duplex) at up to 115.2 Kbit/s, and an auxiliary RS232 interface also up to 115.2 Kbit/s.
How fast does the Datalogic DS8100A scan, and how many symbologies can it read simultaneously?
The DS8100A scans at 1,000 scans per second and can autodiscriminate up to 10 different symbologies in a single reading phase, across 22 supported symbologies including Code 39, Code 128, EAN/UPC, and the 2/5 family.
What are the environmental and ingress protection ratings for the Datalogic DS8100A?
The DS8100A carries an IP64 protection class as standard, with IP65 available on request, and operates across a temperature range of 0 to 50 degrees Celsius.
How is the Datalogic DS8100A configured and set up in a deployment?
Configuration is handled through Genius, a Windows-based software program accessible via serial port or Ethernet link, and the scanner also features an onboard LCD display with a 3-key keypad for human-machine interaction without a PC.
What are the physical dimensions and power requirements of the Datalogic DS8100A?
The scanner measures 215.5 x 170.5 x 126.5 mm and weighs 5.0 kg, with the oscillating mirror model measuring 280 x 254 x 195 mm and weighing 6.4 kg; power supply is 20 to 30 VDC with a typical consumption of 20 W and a maximum of 30 W.
