Datalogic

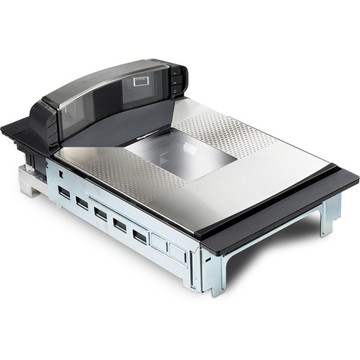

DATALOGIC, MAGELLAN MEDIUM 9800I IMAGING SCANNER SCALE - SCALESENTRY - TALL TDR - RS232 - POWER SUPPLY

SKU:

98208030131-004231

Magellan 9800i Imager Scale Sentry is a Datalogic in-counter imaging scanner scale built for retail and grocery checkout lanes. It reads 1D and 2D barcodes with short-range imaging and RS-232 connectivity, combining fast scanning with integrated weighing for efficient point-of-sale performance.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 9800i is a high-performance in-counter barcode scanner designed for demanding retail and grocery checkout environments. Flush-mounted into the checkout counter, it uses advanced digital imaging to read both 1D and 2D barcodes seamlessly across all planes without requiring cashiers to orient items, reducing rescans and accelerating throughput. An optional Top Down Reader adds a large topside field of view and a customer-facing imager for mobile coupons and loyalty codes, while optional integrated scale configurations support single- and dual-interval weighing. The ScaleSentry shrink monitoring system helps reduce losses at the point of sale. Multi-interface connectivity — including USB, RS-232, and IBM 46XX — simplifies integration with diverse POS systems, and a sapphire glass scanning window ensures long-term durability.

Main Features

  • POS: Yes

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-magellan9800i-datalogic-presentation-readers-datasheet.pdf 98208030131-004231  (PDF) Product document mod-magellan9800i-datalogic-presentation-readers-quick-guide.pdf 98208030131-004231  (PDF) Product document mod-magellan9800i-datalogic-presentation-readers-user-manual.pdf 98208030131-004231  (PDF)
FAQs
ico-plus ico-minus
What barcode symbologies can the Datalogic Magellan 9800i read?
The Magellan 9800i reads all standard 1D and GS1 DataBar linear codes, stacked codes including PDF417, MicroPDF417, and GS1 DataBar variants, 2D codes including Aztec Code, Data Matrix, QR Code, and Micro QR, and optionally Digimarc barcodes.
Which POS interfaces does the Datalogic Magellan 9800i support?
The Magellan 9800i supports USB, RS-232, IBM 46XX, OEM USB Plus Power, and USBCOM-SC, with auxiliary ports including powered RS-232, remote scale display, EAS controller ports, and two powered USB Host Type A ports.
Does the Datalogic Magellan 9800i include an integrated scale, and what are its weighing capacities?
Scale-equipped configurations include a single interval scale with a capacity of 0 to 15.0 kg and a minimum increment of 0.005 kg, or an optional dual interval scale with Range 1 capacity of 0 to 6.0 kg and Range 2 of 6.0 to 15.0 kg; the maximum static weight supported is 68.0 kg.
What is the operating temperature range for the Datalogic Magellan 9800i?
The Magellan 9800i operates between 10 to 40 °C (50 to 104 °F) and can be stored or transported in temperatures from -40 to 70 °C (-40 to 158 °F).
Does the Datalogic Magellan 9800i support loss-prevention or EAS features?
Yes, the Magellan 9800i includes Checkpoint EAS compatibility, ScaleSentry shrink monitoring that uses an infrared beam to detect misplaced items on the scale platter, and Sensormatic SmartSentry firmware integration with the Sensormatic AMB-9010/IPS EAS Deactivation Controller.
What remote management and software utilities are available for the Datalogic Magellan 9800i?
The Magellan 9800i supports remote management via OPOS, JavaPOS, IBM Director, and Wavelink Avalanche, and includes the Scanalyzer Magellan On-Screen Programming configuration utility along with OPOS and JavaPOS utilities, all available for download at no charge.
