Datalogic

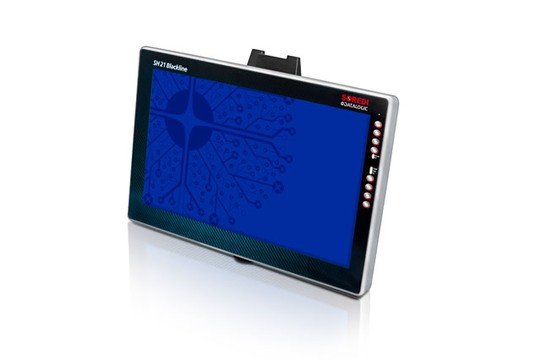

Datalogic SH21 Blackline, 110/230 VAC, USB, RS232, BT, Ethernet, Wi-Fi, 10 IoT Enterprise

SKU:

94S351235

Dual IP65/IP67 sealing, certified to EN 60721-3-5: 1998, positions the Datalogic 94S351235 as a fixed or wall-mount industrial terminal built for harsh warehouse and logistics environments. Its 21-inch projected capacitive LED touchscreen supports multi-touch input through gloves and resolves at 1024 x 768, driven by a quad-core Intel Atom E3845 running at 1.91 GHz with 4 GB of RAM and 32 GB of flash storage. Wireless connectivity follows IEEE 802.11a/b/g/n alongside Bluetooth, while wired interfaces include RJ-45 Ethernet, serial and USB ports. Running Windows 10 IoT, the terminal weighs 23.81 lb and carries CE, FCC and RoHS compliance, backed by a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Blackline SH15 is a rugged vehicle-mount terminal designed for warehouse operators, logistics teams, and manufacturing floor personnel who need a reliable fixed or mobile computing platform in demanding industrial environments. Built on a coated aluminum, no-fan chassis sealed to IP65/IP67, it withstands dust, moisture, shock, and vibration across a wide operating temperature range of -20 to 55 °C / -4 to 131 °F. The 15" color TFT touchscreen delivers XGA 1024 x 768 resolution at 400 cd/m² brightness, and its multi-touch projective capacitive glass with 3 mm anti-glare armored surface remains fully operable even when wearing gloves. An Intel Atom E3845 Quad-Core processor running at 1.91 GHz, paired with 4 GB RAM and 32 GB CFast SSD storage, runs Windows Embedded Standard 7. Wireless connectivity is provided via IEEE 802.11a/b/g/n Wi-Fi and Bluetooth 4.0, complemented by USB and RS-232 ports for peripheral integration.

Main Features

  • Operation System: Windows

  • Rugged: Industrial

  • Connection: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Model E3845
Processor Core Quad-core (4 Core)
Processor Type Atom
Processor Speed 1.91 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 21"
Graphics Modes Full HD
Display Screen Type LED
Touchscreen Yes
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Display Resolution 1024 x 768
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Power Description
Power Source Power Supply
Software
Operating System Windows 10 IoT
Physical Characteristics
Weight (Approximate) 23.81 lb
Miscellaneous
Certifications & Standards
  • CE
  • FCC
  • IP65
  • IP67
  • EN 60721-3-5: 1998
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document sh15-sh21.pdf 94S351235  (PDF)
FAQs
ico-plus ico-minus
What operating systems are available on the Datalogic SH15 Blackline vehicle-mounted terminal?
The SH15 Blackline supports either Windows Embedded Standard 7 or Windows 10 IoT Enterprise, giving buyers flexibility to match their existing warehouse or shop-floor software environment.
What ingress protection rating does the Datalogic SH15 Blackline carry, and what operating temperature range does it support?
The SH15 Blackline is sealed to IP65/IP67 for protection against dust and moisture, and operates from -20 to 55 °C (-4 to 131 °F) without a heater on Capacitive Touch models.
What are the display and processing specifications of the Datalogic SH15 Blackline?
The SH15 Blackline features a 15.0-inch Color TFT display at XGA 1024 x 768 resolution with 400 cd/m² brightness, powered by an Intel Atom E3845 Quad Core processor running at 1.91 GHz with 4 GB RAM and 32 GB CFast SSD storage.
What wired and wireless connectivity does the Datalogic SH15 Blackline offer?
The SH15 Blackline includes Wi-Fi 802.11a/b/g/n (2.4 GHz and 5 GHz) with Cisco CCX v4, Bluetooth 4.0, wired Gigabit Ethernet via RJ-45, two RS-232 serial ports, one USB 3.0 port, two USB 2.0 ports on the bottom, and one additional USB port on top.
What power supply options does the Datalogic SH15 Blackline support for vehicle-mount and fixed-mount deployments?
For vehicle-mount use the SH15 Blackline accepts 12-48 VDC isolated input with an ignition sense feature to automatically control power, and for fixed-mount installations it supports a 110/230 VAC internal power supply; an optional backup battery providing up to 30 minutes of runtime (2,500 mAh at 10.8 VDC, 27 Wh) is also available.
What mounting accessories and peripheral add-ons are compatible with the Datalogic SH15 Blackline?
Compatible accessories include SH Blackline mounting brackets at 10-degree and 130-degree angles, a RAM Mount with round base, ABCD and QWERTY external keyboards, and the Datalogic PowerScan 9500 handheld barcode scanner for data entry and location confirmation.
