Datalogic

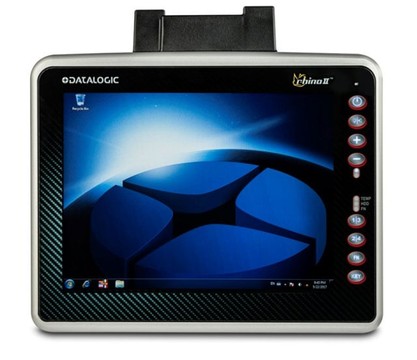

Rhino II 12in, CAP STD, VDC 12

SKU:

94R532255

Running on an Intel Core i5 processor with 8 GB of RAM and Windows 10 IoT, the Datalogic 94R532255 is a vehicle-mount terminal built around a 12-inch projected capacitive touchscreen that accepts gloved-hand input. Its sealed enclosure carries an IP65 ingress protection rating, making it suited to demanding warehouse and factory forklift environments where dust and moisture are daily concerns. The 3 mm anti-glare armored glass display panel supports operation across varying lighting conditions, and the unit draws from a DC power source compatible with vehicle electrical systems. The projected capacitive touch technology and Windows 10 IoT platform support integration with warehouse management workflows and barcode data collection devices.
Prices could not be updated.
Description
ico-plus ico-minus

The Rhino II™ Vehicle Mounted Computer is designed for rugged use in demanding warehouse environments. Available in 10" and 12" display sizes, it boasts an IP65/IP67 sealed design, ensuring durability against dust and moisture. Its integrated display heater allows seamless operation in cold storage facilities. Enhanced with a capacitive touch screen covered by 3 mm anti-glare armored glass, users can operate it even while wearing gloves. The Rhino II’s efficient design boosts productivity during various warehouse tasks like receiving, picking, and shipping, making it an essential tool for modern logistics operations.


Key Features
  • Multiple Operating Systems: Windows Embedded Compact 7, Windows 10 IoT Enterprise, and Android 7.1 Nougat.
  • Display: High-resolution 10" or 12" anti-glare capacitive multi-touch screen.
  • Wireless Connectivity: WLAN and Bluetooth® 4.0 supported.
  • Sealed Protection: Rated IP65/IP67 for dust and water resistance.
  • Wide Temperature Range: Operates from -20°C to 55°C/-4°F to 131°F.

Specifications
  • Dimensions: 10 inch: 27.8 x 22.3 x 6.4 cm; 12 inch: 32.4 x 25.1 x 7.1 cm.
  • Weight: 10" models: 3.4 kg; 12" models: 4.7 kg.
  • Power Supply: 12 VDC; 24/48 VDC internal options available.
  • Humidity: Operating at 10 to 90% non-condensing.
  • Interfaces: 1 x GbE, 2 x USB 2.0, 1 x USB 3.0 (Win7/10 only), 2 x RS-232.
  • Operating Temperature: -20°C to 55°C; freezer model -30°C (-22°F).
  • Warranty: 1-Year Factory Warranty.

Main Features

  • Operation System: Windows

  • Rugged: Industrial

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Manufacturer Intel
Processor Type Core i5
Memory
Standard Memory 8 GB
Display & Graphics
Screen Size 12"
Touchscreen Yes
Touchscreen Type Projected Capacitive
Power Description
Power Source DC
Software
Operating System Windows 10 IoT
Miscellaneous
Ingress Protection (IP) Rating IP65
