Store logo
Datalogic

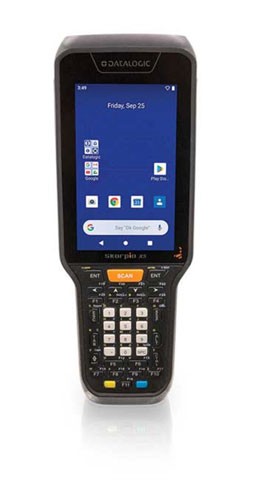

Skorpio X5 Pistol Grip, 802.11 a/b/g/n/ac, 4.3_

SKU:

943500064

Fitted with a 6200 mAh removable Li-Ion battery, the Datalogic 943500064 is a gun-form pistol-grip handheld terminal running Android 10 with Google Mobile Services on a Snapdragon SD660 octa-core processor at 2.20 GHz. The 4 GB of RAM and 64 GB of flash storage are backed by SDXC expansion, while the 4.3-inch WVGA TFT LCD touchscreen resolves at 800 x 480 with 6-point multi-touch and Gorilla Glass 3 protection. Wireless connectivity spans IEEE 802.11 a/b/g/n/ac, Bluetooth 5.0, NFC, and USB Type-C, and the unit supports wireless charging. The imager reads both 1D and 2D barcodes using Green Spot Technology, and a 13 Megapixel rear camera is included. IP65 sealing and repeated-drop resistance to 1.8 m onto concrete cover demanding environments, with an operating range of -4°F (-20°C) to 122°F (50°C) and a with-battery weight of 1.38 lb, suiting logistics, warehouse, manufacturing, retail, and healthcare deployments.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Skorpio X5 is a fully rugged, key-based Android handheld mobile computer designed for enterprise workers in warehouse, retail, logistics, manufacturing, and healthcare environments. Powered by a Qualcomm Snapdragon 660 octa-core 2.2 GHz processor and Android 10 with Google Mobile Services, it delivers the processing headroom needed for demanding enterprise applications. The 4.3" Gorilla Glass multi-touch display offers high visibility indoors and outdoors, while multiple scan engine options — including a 2D Standard Range imager with Green Spot confirmation — ensure fast, accurate barcode capture. IP65 sealing and drop resistance up to 1.8 m / 6.0 ft onto concrete make it dependable in harsh conditions. Bluetooth 5.0, IEEE 802.11 a/b/g/n/ac Wi-Fi, and NFC provide comprehensive wireless connectivity, and hot-swappable batteries in 3500 mAh or 6200 mAh capacities support uninterrupted 24/7 operations.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Image Sensor Type Imager
Scanner Range Medium Range
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Gyroscope
  • Proximity
  • Accelerometer
  • Ambient Lighting
Features
  • Gorilla Glass 3
  • Drop Resistant
  • Chemical Resistant
  • Oil Resistant
  • Green Spot Technology
Drop Specification

Withstands multiple drops from 1.8 m / 6.0 ft onto concrete according to IEC62-2-32
Illumination Type LED
Illumination Color White
Processor & Chipset
Processor Type Snapdragon
Processor Model SD660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 64 GB
Memory Card Supported SDXC
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type TFT LCD
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 6
Keyboard/Keypad
Keyboard Type Function Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 10
Power Description
Power Source Battery
Battery Information
Battery Capacity 6200 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Physical Characteristics
Form Factor Gun
Rugged Yes
Weight (With Battery) 1.38 lb
Miscellaneous
Application/Usage
  • Logistics
  • Warehouse
  • Retail
  • Manufacturing
  • Healthcare
Ingress Protection (IP) Rating IP65
Documents
ico-plus ico-minus
Product document skorpio-x5.pdf 943500064  (PDF)
