Datalogic

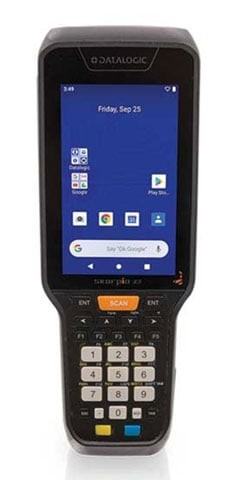

Datalogic Skorpio X5, 2D, SR, BT, Wi-Fi, NFC, num., Gun, GMS, ext. bat., Android

SKU:

943500029

Fitted with a high-capacity 6200 mAh battery, the Datalogic 943500029 is a gun-grip Android handheld terminal rated IP65 for dust and water resistance and validated to withstand multiple drops from 1.8 m / 6.0 ft onto concrete per IEC62-2-32. It runs Android 10 with GMS on a Snapdragon SDM660 octa-core processor clocked at 2.20 GHz, backed by 3 GB RAM and 32 GB of flash storage with SDXC expansion. The standard-range imager reads both 1D and 2D barcodes and delivers good-read confirmation via Green Spot Technology, while a 4.3-inch WVGA LCD at 800 x 480 supports six-point multi-touch input alongside a numeric keypad. Wireless connectivity covers Wi-Fi, Bluetooth 5.0 BLE, and NFC, with a USB Type-C port for wired transfer; wireless charging is also supported. A 13-megapixel rear camera, accelerometer, gyroscope, ambient light, and proximity sensors round out the feature set, and the Gorilla Glass 3 display is rated water and oil resistant. Operating temperature spans -4°F (-20°C) to 122°F (50°C), and the unit weighs 1.38 lb with battery, suiting retail, manufacturing, logistics, and industrial environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Skorpio X5 is a fully rugged, key-based Android handheld mobile computer designed for enterprise workers in warehouse, retail, logistics, manufacturing, and healthcare environments. Powered by a Qualcomm Snapdragon 660 octa-core 2.2 GHz processor and Android 10 with Google Mobile Services, it delivers the processing headroom needed for demanding enterprise applications. The 4.3" Gorilla Glass multi-touch display offers high visibility indoors and outdoors, while multiple scan engine options — including a 2D Standard Range imager with Green Spot confirmation — ensure fast, accurate barcode capture. IP65 sealing and drop resistance up to 1.8 m / 6.0 ft onto concrete make it dependable in harsh conditions. Bluetooth 5.0, IEEE 802.11 a/b/g/n/ac Wi-Fi, and NFC provide comprehensive wireless connectivity, and hot-swappable batteries in 3500 mAh or 6200 mAh capacities support uninterrupted 24/7 operations.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Range: Standard Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Image Sensor Type Imager
Light Source Laser
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Accelerometer
  • Gyroscope
  • Ambient Lighting
  • Proximity
Color Supported 16 Million Colors
Features
  • Gorilla Glass 3
  • Presentation Mode
  • Gorilla Glass
  • Water Resistant
  • Oil Resistant
  • Green Spot Technology
Drop Specification

Withstands multiple drops from 1.8 m / 6.0 ft onto concrete according to IEC62-2-32

Illumination Type LED
Illumination Color White
Processor & Chipset
Processor Type Snapdragon
Processor Model SDM660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Memory Card Supported SDXC
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 6
Keyboard/Keypad
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 10
Battery Information
Battery Capacity 6200 mAh
Battery Included Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Physical Characteristics
Product Color Black
Form Factor Gun
Rugged Yes
Weight (With Battery) 1.38 lb
Miscellaneous
Application/Usage
  • Retail
  • Manufacturing
  • Logistics
  • Industrial
Ingress Protection (IP) Rating IP65
