Datalogic

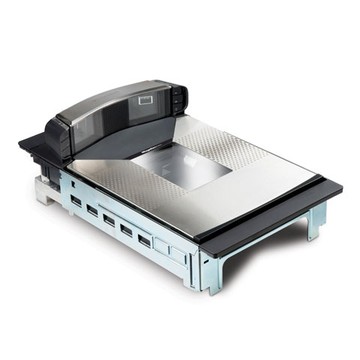

Datalogic Magellan 9300i, Scanner Only, Short Platter (Cable Sold Separately)

SKU:

931013110-00310

Configured as a scanner-only shelf-mount unit with a short platter, the Datalogic 931013110-00310 is an in-counter barcode scanner supplied with a power brick and EU power cord, with cable sold separately. It uses digital imager technology with LED illumination to read both 1D and 2D codes simultaneously across all planes, covering standard 1D symbologies including GS1 DataBar linear codes, stacked formats such as PDF417, MicroPDF417 and GS1 DataBar Expanded Stacked, and 2D formats including Aztec Code, Data Matrix, QR Code and Micro QR Code. The scanner operates up to 86080 lux ambient light and carries a 25kV air electrostatic discharge rating, with maximum power consumption of 12 W. Host interfaces include USB, Serial and IBM 46XX in a multi-interface configuration, and grayscale image capture outputs BMP and JPEG formats. The 11.5-inch-wide chassis operates from 50°F (10°C) to 104°F (40°C) and stores from -40°F (-40°C) to 158°F (70°C) at 5% to 95% non-condensing humidity, suited to retail POS and self-checkout environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 9300i is a high-performance in-counter barcode scanner designed for retail checkout environments, including traditional POS lanes and self-checkout kiosks. Its digital imager reads both 1D and 2D barcodes seamlessly across all scanning planes, eliminating the need for cashiers to orient items — accelerating throughput and reducing errors at the point of sale. A traditional bonnet height with large horizontal and vertical windows allows optimum positioning alongside touchscreens, payment terminals, and printers, while maintaining ergonomic comfort for both seated and standing cashiers. Connectivity via Serial, Powered USB, and IBM 46XX interfaces ensures broad POS system compatibility, and optional ScaleSentry shrink monitoring technology makes the 9300i a capable loss-prevention tool for grocery and general retail operations. A 1-Year Factory Warranty is included.

Main Features

  • POS: Yes

  • Connection: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

STACKED CODES:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

2D:

  • Aztec Code
  • Data Matrix
  • QR Code
  • Micro QR Code
Image Sensor Type Imager
Features
  • Vibration
  • Diagnostic Reporting
  • Checkpoint EAS
  • Sensormatic EAS
  • Grayscale Image Capture
  • Ergonomic Design
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86080 lux
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Network & Communication
Infrared Yes
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • IBM 46XX
  • Multi-interface
Power Description
Maximum Operating Power Consumption 12 W
Power Supply Included Yes
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Shelf Mount
Width 11.5"
Miscellaneous
Application/Usage
  • Self-checkout
  • Retail
Documents
ico-plus ico-minus
Product document 9800i-2021.pdf 931013110-00310  (PDF)
FAQs
ico-plus ico-minus
What barcode types can the Datalogic Magellan 9300i read?
The Magellan 9300i reads all standard 1D and linear codes including GS1 DataBar, stacked codes such as PDF417, MicroPDF417, and GS1 DataBar composites, and 2D codes including Aztec Code, Data Matrix, QR Code, and Micro QR Code.
What host interfaces does the Datalogic Magellan 9300i support?
The scanner supports a multi-interface configuration covering RS-232, IBM 46XX, and USB, with auxiliary ports including Powered RS-232, Remote Scale Display, EAS Controller ports, and two Powered USB Host (Type A) ports.
What is included in the box with the Datalogic Magellan 9300i?
The package includes the Magellan 9300i in-counter barcode scanner and an RS-232 standard cable; a USB cable is sold separately.
Is the Datalogic Magellan 9300i suitable for self-checkout environments?
Yes, its traditional bonnet height and large horizontal and vertical windows allow optimum positioning for POS or self-checkout touchscreens, payment terminals, and printers while maintaining ergonomic comfort for both seated and standing cashiers.
What loss-prevention capabilities does the Datalogic Magellan 9300i offer?
The 9300i supports ScaleSentry shrink monitoring and prevention technology, which uses an infrared beam to detect misplaced produce on the scale platter and triggers an alert to the cashier, and it also supports all major EAS systems.
What warranty and remote management support does the Datalogic Magellan 9300i provide?
The scanner comes with a 1-Year Factory Warranty and supports remote management through OPOS, JavaPOS, IBM Systems Director, and Wavelink Avalanche, with diagnostic reporting and host download capabilities.
