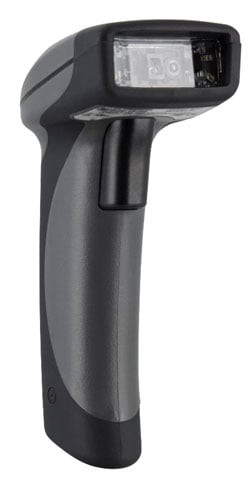

Code CR1500 Barcode Scanner 2D, Handheld, Corded, High-Density, IP54

The Pro 1500 (CODE CR1500 Barcode Reader) is a compact, tethered handheld 2D area imager designed for reliable, high-throughput barcode capture across retail, POS, healthcare and light industrial environments. Built on a dual-field optical platform with high-density decoding, the CR1500 family reads 1D, 2D, postal and stacked symbologies — including PDF417 and optional DPM — and performs well on mobile screens and glossy surfaces. Variants offer wired USB and Serial (RS232) interfaces, disinfectant-ready housings and IP54 ingress protection for frequent cleaning and rugged daily use. The product line balances accurate decoding, ergonomic handheld operation and easy integration for B2B deployments that require consistent scanning performance and straightforward installation.

Key Features

• Multi-symbology decoding: Supports 1D, 2D, postal and PDF417 codes to handle diverse labeling across workflows.
• Dual-field optics: Patented dual-field design provides both high-density and wide-field reading for small and large codes.
• Rugged, cleanable housing: IP54 protection and CodeShield Level 3 disinfectant-ready, PVC-free options suit healthcare and demanding environments.
• Flexible wired connectivity: USB and Serial (RS232) interfaces and corded operation simplify integration with POS and host systems.
• Operator feedback and control: Visual, audible and haptic indicators plus a JavaScript device control platform enable tailored workflows and easy confirmation.

Specifications

• Product Name: Pro 1500 / CODE CR1500 Barcode Reader
• Brand: Code
• Form Factor: Handheld
• Scanner Type: 2D area imager
• Supported Barcode Types: 1D, 2D, Postal, PDF417 (variants)
• Imager / Sensor: CMOS (area imager)
• Minimum Readable Code Size: 2 mils (variant), 3 mils (variant)
• Scan Pattern: Area
• Connectivity / Interface: Wired USB, Serial (RS232)
• Included Cable: 6 ft straight RS232 cable; 6 ft straight USB Affinity cable (variants)
• Cable Length (metric): 1.83 m (variant)
• Ingress Protection Rating: IP54
• Disinfectant-Ready Housing: CodeShield Level 3 (variant)
• Color: Dark gray, Light gray (variants)
• Weight: 0.26 lbs; 1.07 lbs; 4.09 oz (variants)
• Dimensions (approx.): 3" L x 2" W x 5.2" H (variants)
• Included Items / Options: Scanner only (some SKUs), stand included (some SKUs), power supply not included (variants)
• Additional Features: High-density scanning, dual-field optics, omnidirectional imaging, customizable feedback, JavaScript programmable device control
