Citizen

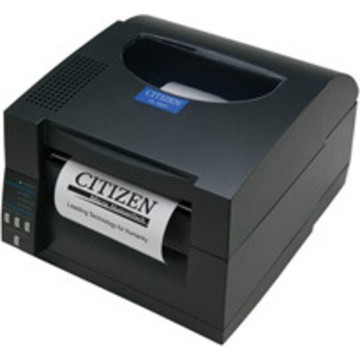

CITIZEN, CL-S621, W/ ETHERNET & PEELER

SKU:

CL-S621-EP-GRY

200 DPI BARCODE PRINTER W/ ETHERNET & PEELER
Prices could not be updated.
Description
ico-plus ico-minus

The Citizen CL-S621 Barcode Label Printer is a versatile and powerful desktop solution designed for high-performance printing. Offering both direct thermal and thermal transfer printing, the CL-S621 is equipped with a 360-meter ribbon for maximum productivity and minimal downtime. The printer features an innovative metal Hi-Lift™ mechanism for easy media and ribbon loading. With its 32-bit RISC processor, it provides lightning-fast printing speeds and supports a variety of label formats, including standard and pediatric medical wristbands, making it ideal for healthcare, asset tracking, inventory control, and product labeling.


Key Features
  • Powerful 32-bit RISC processor
  • 360-meter ribbon for extended printing
  • Metal Hi-Lift™ mechanism for easy access
  • Standard and pediatric medical wristband capability
  • Multiple interface options: Serial, USB, Parallel, Ethernet, Wi-Fi
  • Label design software included
  • Auto-Sensing Zebra® and Datamax® emulations

Specifications
  • Printing Method: Thermal transfer / Direct thermal
  • Print Width: 4.1" (max)
  • Resolution: 203 dpi
  • Print Speed: 4 ips TT (6 ips DT)
  • Media Types: Roll or fanfold, continuous or perforated, die-cut labels, tags, and tickets
  • Paper Width: .077" - 4.65"
  • Ribbon Type: Wax, wax-resin, or resin
  • Ribbon Length: 1182' / 360m
  • Barcode Types: Linear and 2-Dimensional
  • Memory: DRAM: 8 MB, Flash: 4 MB
  • Weight: 10.7 lbs
  • Dimensions: 9.1" x 11.4" x 10.2"
  • Warranty: Two years

Main Features

  • Equipment Format: Industrial

  • Case color: Grey

  • Connection: Serial, USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • Case Code
  • Code 93
  • UPC 2 and 5 Digit Addendums
  • UCC/EAN 128
  • Telepen
  • FIM
  • UPS MaxiCode
  • PDF-417
  • Data Matrix
  • QR Code
  • Code 11
  • Industrial 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • POSTNET
  • Codablock
  • Micro PDF-417
Peel Facility Yes
Application/Usage Desktop
Features Active Ribbon Control and Positioning System
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 8 MB
Memory Technology DRAM
Flash Memory 2 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Media Types & Handling
Media Type
  • Roll Fed
  • Fanfold
  • Continuous Label
  • Perforated Label
  • Die-cut Label
  • Tag
  • Ticket
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 10 mil
Maximum Roll Diameter 5"
Maximum Label Width 4.65"
Label Core Size 3"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation DPL
Power Description
Power Source AC Supply
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Color Family Gray
Product Color Gray
Height 10.4"
Width 9.1"
Depth 11.4"
Weight (Approximate) 10.80 lb
Miscellaneous
Package Contents
  • CL-S621 Label Printer
  • Software & Driver CD
Platform Supported PC
Certifications & Standards
  • UL
  • C-UL
  • FCC class A
  • CCC
  • CE
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document mod-cl-s621-citizen-label-printer-datasheet.pdf CL-S621-EP-GRY  (PDF) Product document mod-cl-s621-citizen-label-printer-user-manual.pdf CL-S621-EP-GRY  (PDF)
