CBC Z8-VD2V-2 Racks

SKU:

Z8-VD2V-2

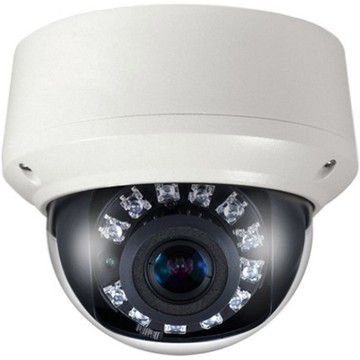

Security Cameras, CBC GANZ GENSTAR AHD, 1080p, 2.8-12mm, IR, dWDR, IP67, 12VDC/24VAC, 4-in-1
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from CBC.
Technical Specifications
ico-plus ico-minus
Technical Information
Recording Formats HD
HD Recording Yes
Night Vision Yes
Night Vision Distance 98 ft
Night Vision Type Infrared
Number of IR LEDs 12
Display & Graphics
Image Sensor Type CMOS
Color Supported
  • Color
  • Monochrome
Field of View H: 110° ~ 39.3°, V:60.5° ~ 23.1°
Video
Video Formats CVBS (Analog)
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 30 fps
Video Signal Format
  • NTSC
  • PAL
Analog Video Signal Format
  • CVBS
  • AHD
  • TVI
  • CVI
Lens
Lens Type Fixed
Minimum Focal Length 2.80 mm
Maximum Focal Length 12 mm
Lens Included Yes
Maximum Aperture f/1.2
Optical Zoom 4.3x
Exposure
Shortest Shutter Speed 1/10000 Second
Longest Shutter Speed 1/30 Second
Network & Communication
Connectivity Technology Wired
Power Description
Input Voltage 12 V DC
Physical Characteristics
Mount Type
  • Pendant Mount
  • Wall Mount
Form Factor Dome
Diameter 5.1"
Weight (Approximate) 1.50 lb
Environmental Conditions
Minimum Operating Temperature 14°F (-10°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 85%
Miscellaneous
Features
  • 3D Digital Noise Reduction
  • Wide Dynamic Range
  • Built-in Mechanical ICR
  • Back Light Compensation (BLC)
  • Day/Night
  • Digital Noise Reduction
  • Built-in IR LED
  • Built-in OSD Function
  • Alarm Triggering
  • Defog
  • Highlight Compensation (HLC)
  • Privacy Masking
  • Motion Detection
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP67
Warranty
Limited Warranty 36 Month
