Casio

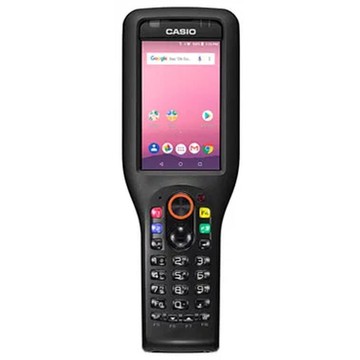

Casio DT-X400 Rugged Handheld Computers, IP67, 2 GB, 16 GB
SKU:
MOD-DT-X400
The DT-X400 Series Casio is a terminal that features an innovative design, designed for easy handling it. It provides continuous operation time up to 30 hours, so users do not have to worry about the battery during the workday. Is equipped by the Android 8.1 system also allows users to access many business applications and cloud services. The DT-X400 has a resistance to dust and water that is compatible with IP67, and can operate at temperature ranging from -20 to 50 degree.
Select model
Description
The Casio Terminal (DT‑X400 series) is a rugged handheld mobile computer engineered for continuous data capture and mobile workforce applications in warehousing, logistics, field service, retail and industrial environments. Designed to withstand dust and water exposure and repeated drops, the DT‑X400 family combines durable IP67 sealing and shock resistance with business-grade connectivity and long runtime to minimize downtime. Available in configurations with 1D laser, 2D CMOS imager or combined scanning options, the platform delivers reliable barcode capture, GPS positioning, NFC support and Android application compatibility to streamline inventory, asset tracking and field operations while improving operator productivity and integration into enterprise systems.
Key Features
- Rugged protection: IP67 ingress rating and 3.0 m drop resistance provide dependable operation in harsh, dusty or wet workplaces.
- Flexible scanning options: Configurations include integrated 1D laser, 2D CMOS imager or dual laser+imager setups to suit diverse barcode capture requirements.
- Comprehensive connectivity: Built‑in WLAN (802.11 a/b/g/n), Bluetooth v5.0 (EDR/LE), NFC and optional cellular WAN plus USB Type‑C enable seamless data exchange and device pairing.
- Location & identification: Integrated A‑GPS with GLONASS and BeiDou plus NFC standards support precise positioning and secure short‑range transactions.
- Long battery runtime: Rechargeable lithium‑ion battery (≈2900 mAh) delivers extended operation—approximately 30 hours—to support extended shifts.
- Business‑ready platform: Android 8.1 with a Qualcomm quad‑core 1.3 GHz processor, 2 GB RAM and 16 GB storage provides a familiar, manageable environment for enterprise apps.
Specifications
- Brand: Casio
- Product Family / Model: Terminal / DT‑X400 series (examples: DT‑X400‑C21, DT‑X400‑20, DT‑X400‑10)
- Operating System: Android 8.1
- Processor: Qualcomm quad‑core 1.3 GHz
- RAM: 2 GB
- Internal Storage: 16 GB
- Display Size: 3.2 inches
- Display Type: Transmissive color TFT LCD
- Display Resolution: 800 × 480 px
- Touch Panel Type: Resistive touch panel
- Scanner Type: Integrated 1D laser; integrated 2D CMOS imager; some models support dual laser+imager
- Rear Camera: Approx. 8 MP (where equipped)
- NFC Standards: ISO 14443 Type A/Type B, FeliCa, ISO 15693
- GPS: Built‑in A‑GPS, GLONASS, BeiDou
- Wireless LAN: IEEE 802.11 a/b/g/n (WPA2)
- Bluetooth: v5.0 (EDR/LE)
- USB Interface: USB 2.0 Type‑C
- Card Slot: microSD (SDXC compatible) × 1
- Sensors: Accelerometer, illumination sensor, proximity sensor
- Battery Type: Rechargeable lithium‑ion
- Battery Capacity: 2900 mAh
- Battery Life (operating time): Approx. 30 hours
- IP Rating: IP67
- Drop Resistance: 3.0 m
- Operating Temperature Range: -20 to 50 °C
- Weight: Approx. 260 g
- External Dimensions (W × D × H): Approx. 66 (grip: 45) × 196 × 38 (grip: 33) mm
- Cellular (WAN): LTE, UMTS/HSPA/HSPA+, GSM/GPRS/EDGE (nano‑SIM) on certain models
Documents
mod-dt-x400-casio-handheld-terminals-datasheet.pdf MOD-DT-X400
FAQs
What ingress protection and drop resistance does the Casio DT-X400 offer for harsh environments?
The DT-X400 carries an IP67 rating, making it fully sealed against dust and capable of withstanding water immersion, and it is built to survive drops from up to 3.0 m.
What wireless connectivity options are built into the Casio DT-X400?
The device includes IEEE 802.11 a/b/g/n Wi-Fi with WPA2, Bluetooth 5.0 with EDR and LE support, NFC, and a USB 2.0 Type-C port; certain models also add LTE, UMTS/HSPA/HSPA+, and GSM/GPRS/EDGE cellular WAN via a nano-SIM slot.
How long does the Casio DT-X400 battery last, and is it rechargeable?
The built-in rechargeable lithium-ion battery has a capacity of 2,900 mAh and delivers approximately 30 hours of operating time, supporting full extended shifts without a mid-day charge.
What barcode scanning configurations are available on the Casio DT-X400?
The DT-X400 series is offered with an integrated 1D laser scanner, an integrated 2D CMOS imager, or a dual configuration combining both a laser and an imager, allowing buyers to match the unit to their specific barcode capture requirements.
What are the core computing specifications of the Casio DT-X400?
It runs Android 8.1 on a Qualcomm quad-core 1.3 GHz processor, paired with 2 GB of RAM and 16 GB of internal storage, plus a microSD slot that accepts SDXC cards for additional capacity.
What temperature range and location capabilities does the Casio DT-X400 support for field and outdoor deployments?
The device operates across a wide temperature range of -20 to 50 °C and includes built-in A-GPS with GLONASS and BeiDou support, making it suitable for outdoor field service, logistics, and cold-storage environments.
